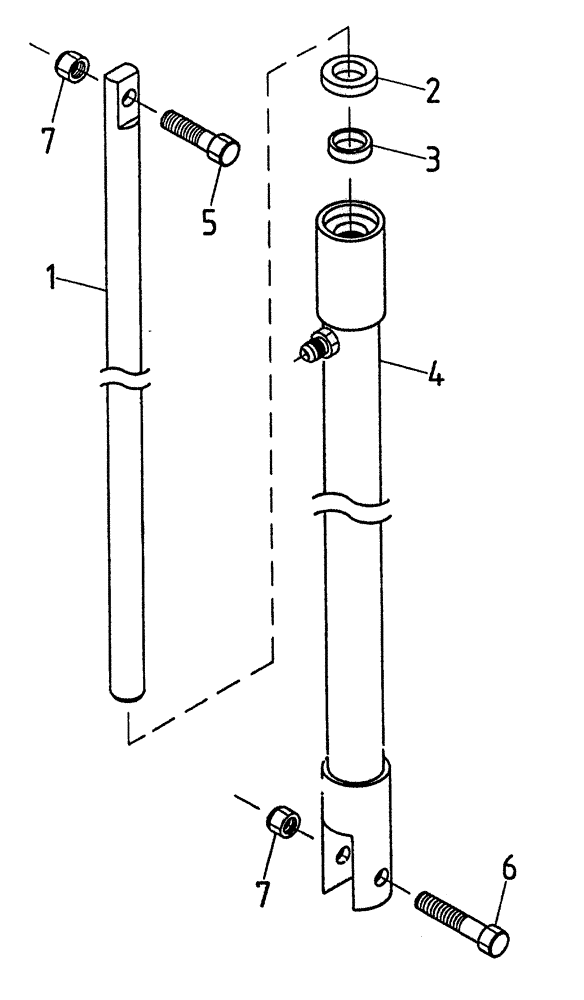

Запчасти Case IH 7700 (B01[62A]) - HYDRAULIC CYLINDER {HEIGHT INDICATOR} (OPTIONAL MOUNT) Hydraulic Components & Circuits

1

87237350

SHAFT,22.23mm OD x 692mm L

1шт.

2

00100552

OIL SEAL

1шт.

3

00100759

OIL SEAL

1шт.

4

87237351

CYLINDER,25mm Bore Dia

barrel

1шт.

5

FM112045

BOLT

1шт.

6

FM112060

BOLT

1шт.

7

NC112000

NUT

2шт.
