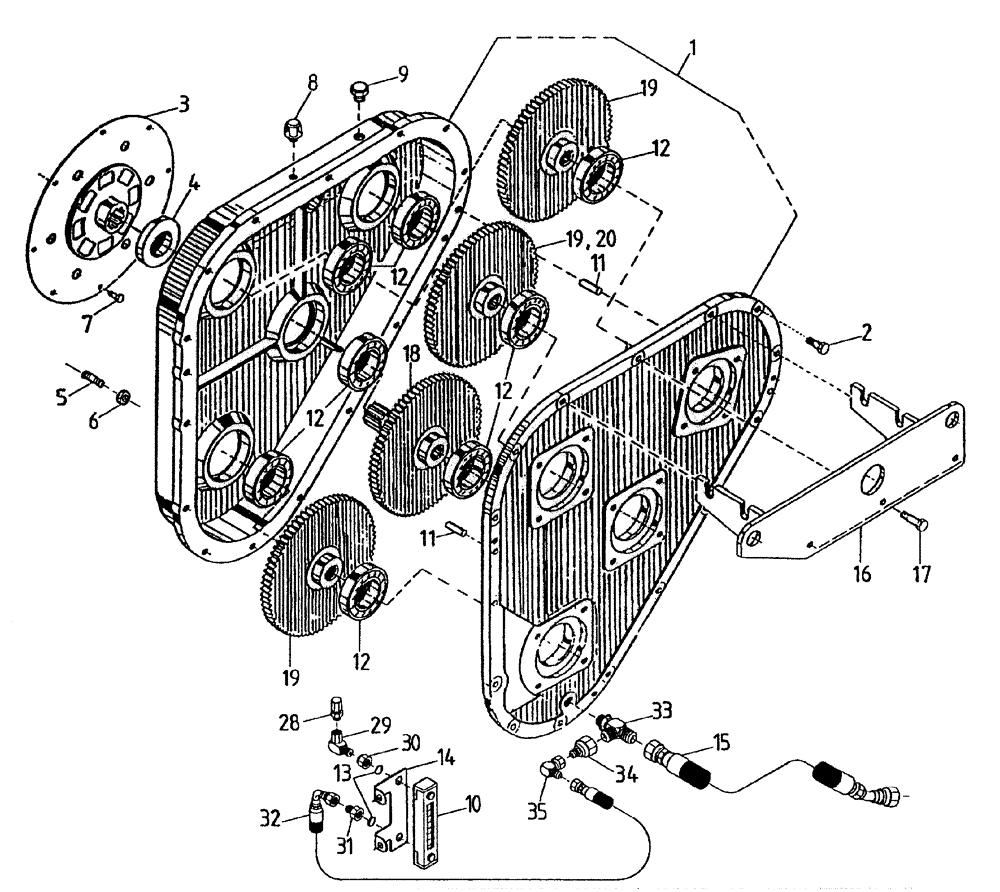

Запчасти Case IH 7700 (C05[10A]) - GEARBOX {6CT FIXED/VARIABLE EXTRACTOR} Engine & Engine Attachments

1

87223197

KIT

GEARBOX and COVER

1шт.

2

00601506

BOLT

12шт.

3

00180520

DRIVE PLATE

1шт.

4

00100791

OIL SEAL

1шт.

5

00607959

STUD

12шт.

6

NJ110000

NUT

12шт.

7

FM110020

BOLT

8шт.

8

00407924

FILLER CAP

breather

1шт.

9

00400106

HYD CONNECTOR

PLUG

1шт.

10

00101646

LEVEL GAUGE CONTROL

1шт.

11

00605682

PIN

DOWEL

2шт.

12

00140224

BALL BEARING

8шт.

13

00100010

O-RING

2шт.

14

87242102

MOUNTING PARTS

1шт.

15

86310712

HOSE ASSY.

1шт.

16

87213543

LUG

lifting

1шт.

17

00608166

BOLT

3шт.

18

87232113

DRIVING GEAR

74 tooth

1шт.

19

87232114

DRIVEN GEAR

67 tooth

1шт.

20

87232896

GEAR

67 tooth, variable speed

1шт.

23

87230544

GEARBOX ASSEMBLY, fixed speed

1шт.

24

87224666

DRIVE ASSEMBLY

1шт.

25

87230538

GEARBOX ASSY

GEARBOX and DRIVE ASSEMBLY, fixed speed

1шт.

26

87233542

GEARBOX ASSY

GEARBOX ASSEMBLY, variable speed

1шт.

27

87233541

GEARBOX and DRIVE ASSEMBLY, variable speed

1шт.

28

00181024

BREATHER

1шт.

29

00409235

HYD CONNECTOR

ELBOW

1шт.

30

87242104

ADAPTER

1шт.

31

87242103

ADAPTER,9/16" - 18

1шт.

32

81675700

HOSE

1шт.

33

00403549

TEE

1шт.

34

00404798

HYD CONNECTOR

ADAPTOR

1шт.

35

00402879

HYD CONNECTOR

ELBOW

1шт.
