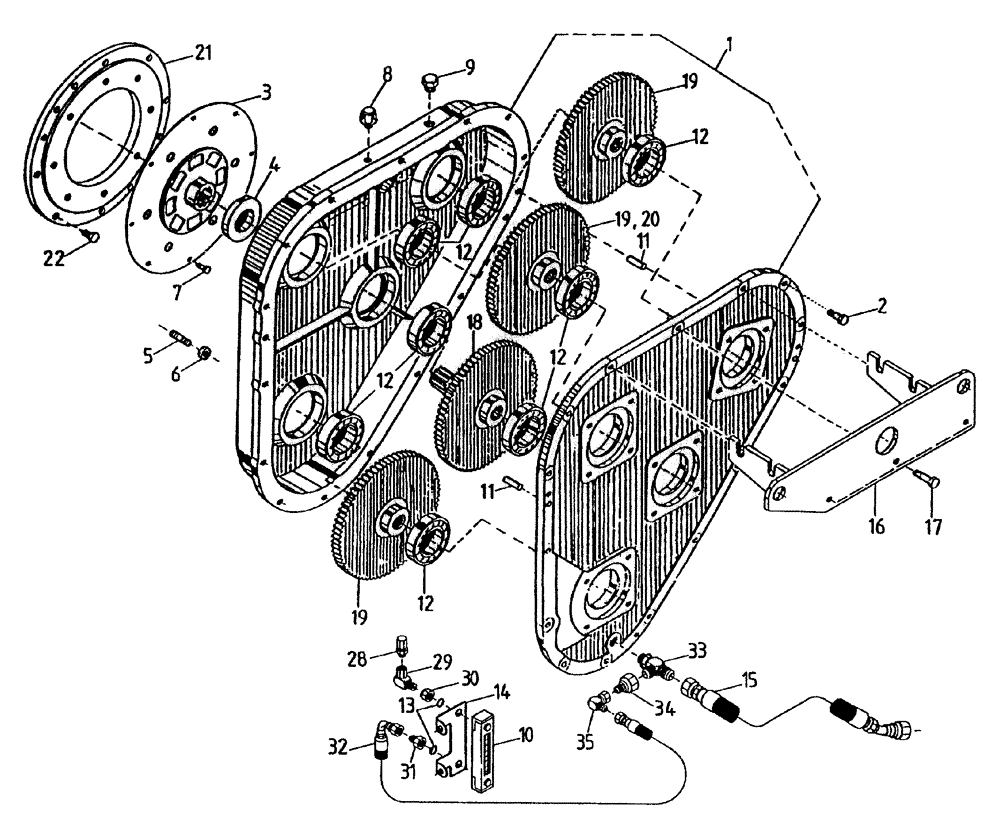

Запчасти Case IH 7700 (C05[05A]) - GEARBOX {125 FIXED/VARIABLE EXTRACTOR} Engine & Engine Attachments

1

87238223

GEARBOX

and COVER

1шт.

2

00601506

BOLT

12шт.

3

00180520

DRIVE PLATE

1шт.

4

00100791

OIL SEAL

1шт.

5

87241859

STUD

12шт.

6

NJ112000

NUT

12шт.

7

FC110020

SCREW,M10 x 1.5 x 20mm

8шт.

8

00407924

FILLER CAP

breather

1шт.

9

00400106

HYD CONNECTOR

PLUG

1шт.

10

00101646

LEVEL GAUGE CONTROL

1шт.

11

00605682

PIN

DOWEL

2шт.

12

00140224

BALL BEARING

8шт.

13

00100010

O-RING

2шт.

14

87242102

MOUNTING PARTS

1шт.

15

86310712

HOSE ASSY.

1шт.

16

87213543

LUG

lifting

1шт.

17

00608166

BOLT

3шт.

18

87232771

DRIVING GEAR

76 tooth

1шт.

19

87232772

DRIVEN GEAR

65 tooth

1шт.

20

87230587

DRIVEN GEAR

65 tooth, variable speed

1шт.

21

87230177

ADAPTER

1шт.

22

00601516

BOLT

BOLT

12шт.

23

87238222

GEARBOX ASSEMBLY, fixed speed

1шт.

24

87238221

DRIVE ASSEMBLY

1шт.

25

87238220

GEARBOX and DRIVE ASSEMBLY, fixed speed

1шт.

26

87238234

GEARBOX ASSY

variable speed

1шт.

27

87238233

GEARBOX and DRIVE ASSEMBLY, variable speed

1шт.

28

00181024

BREATHER

1шт.

29

00409235

HYD CONNECTOR

ELBOW

1шт.

30

87242104

ADAPTER

1шт.

31

87242103

ADAPTER,9/16" - 18

1шт.

32

81675700

HOSE

1шт.

33

00403549

TEE

1шт.

34

00404798

HYD CONNECTOR

ADAPTOR

1шт.

35

00402879

HYD CONNECTOR

ELBOW

1шт.
