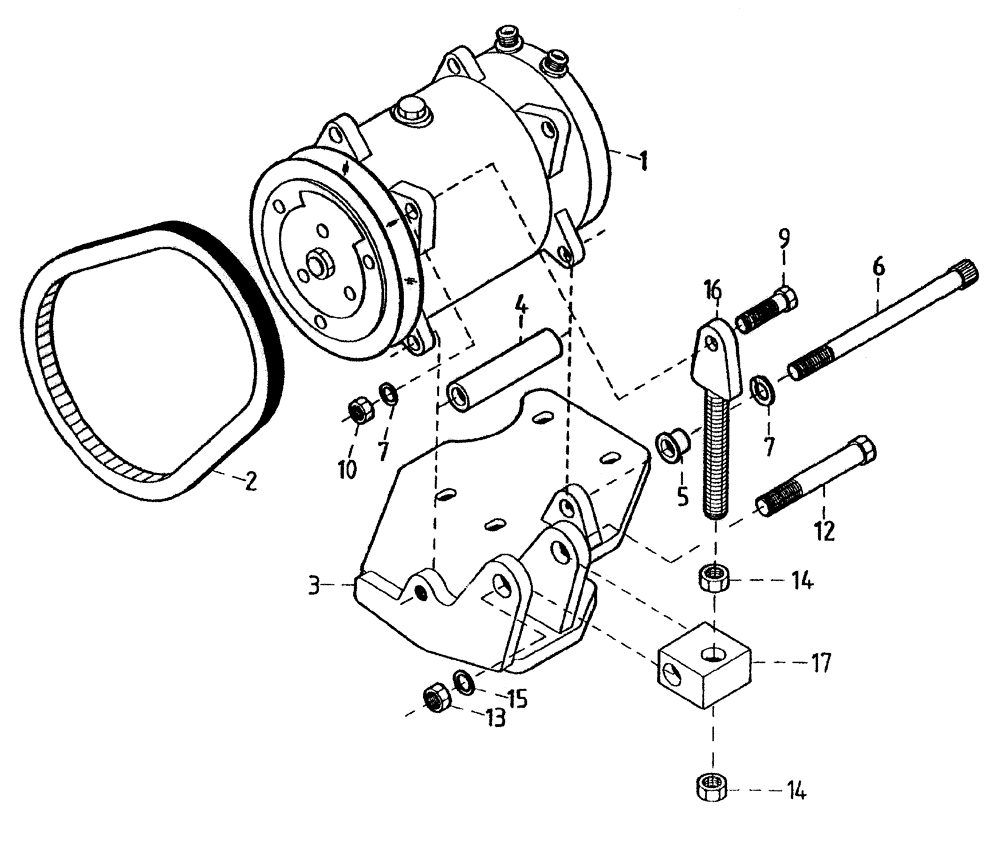

Запчасти Case IH 7700 (A06[25A]) - AIR CONDITIONER COMPRESSOR/MOUNT/BELT {6CT} Mainframe & Functioning Components

1

00137292

COMPRESSOR

1шт.

2

00154223

BELT

V

1шт.

3

87229625

MOUNTING PARTS

1шт.

4

87235497

BUSHING,10.3mm ID x 25.4mm OD x 83.3mm L

spacer

1шт.

5

87235498

SPACER

1шт.

6

FC110140

SCREW,M10 x 1.5 x 140mm

1шт.

7

WB100000

WASHER

2шт.

9

FA110050

BOLT

1шт.

10

NC110000

NUT

1шт.

12

FA112080

BOLT

1шт.

14

NA116000

NUT

2шт.

15

WB120000

WASHER

1шт.

16

87237012

ADJUSTMENT SCREW,150mm L

BOLT

1шт.

17

87237016

BLOCK

1шт.
