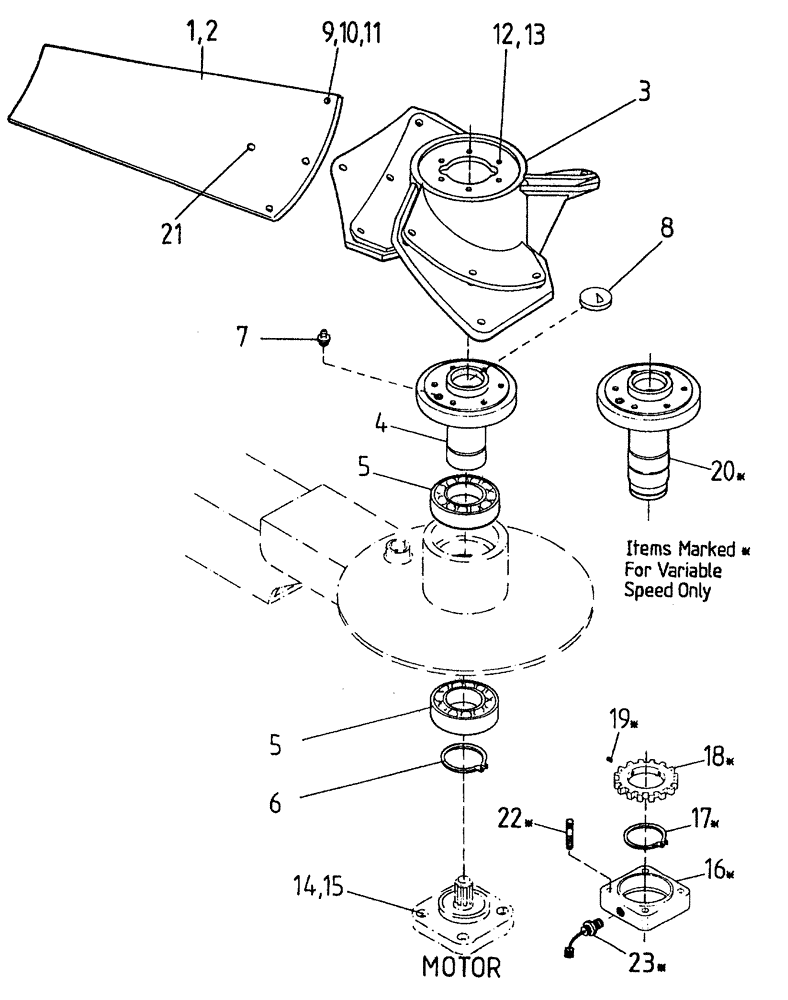

Запчасти Case IH 7700 (A03[00A]) - EXTRACTOR FANS (PRIMARY/SECONDARY) Mainframe & Functioning Components

1

87231814

SET OF BLADES

KNIFE primary swinging

1шт.

1

87231808

BLADE

SET primary rotary chopper

1шт.

2

87231816

ASSEMBLY

BLADE SET knife secondary swinging

1шт.

2

87231810

SET OF BLADES

secondary rotary chopper

1шт.

3

87240269

HUB

1шт.

4

86304126

SPLINED COUPLING

fixed speed

1шт.

5

00140309

BALL BEARING

2шт.

6

CE055000

CIRCLIP

1шт.

7

00153751

LUBE NIPPLE

grease

1шт.

8

00132819

PLUG

1шт.

9

00601584

BOLT

9шт.

10

00605829

WASHER

12шт.

11

00605803

NUT

12шт.

12

00601499

BOLT

6шт.

13

00605827

WASHER

6шт.

14

FA112040

BOLT

fixed speed

4шт.

15

00605829

WASHER

4шт.

16

87236400

ADAPTER

variable speed

1шт.

17

CE050000

CIRCLIP

variable speed

1шт.

18

87236406

TACHOMETER

PICKUP, variable speed

1шт.

19

FE106010

SCREW,M6 x 10mm

variable speed

2шт.

20

87236402

COUPLING

variable speed

1шт.

21

00601579

BOLT

3шт.

22

87236401

STUD

STUD, variable speed

4шт.

22

NA112000

NUT

variable speed

4шт.

23

87238304

SENDER UNIT

SENDER variable speed

1шт.
