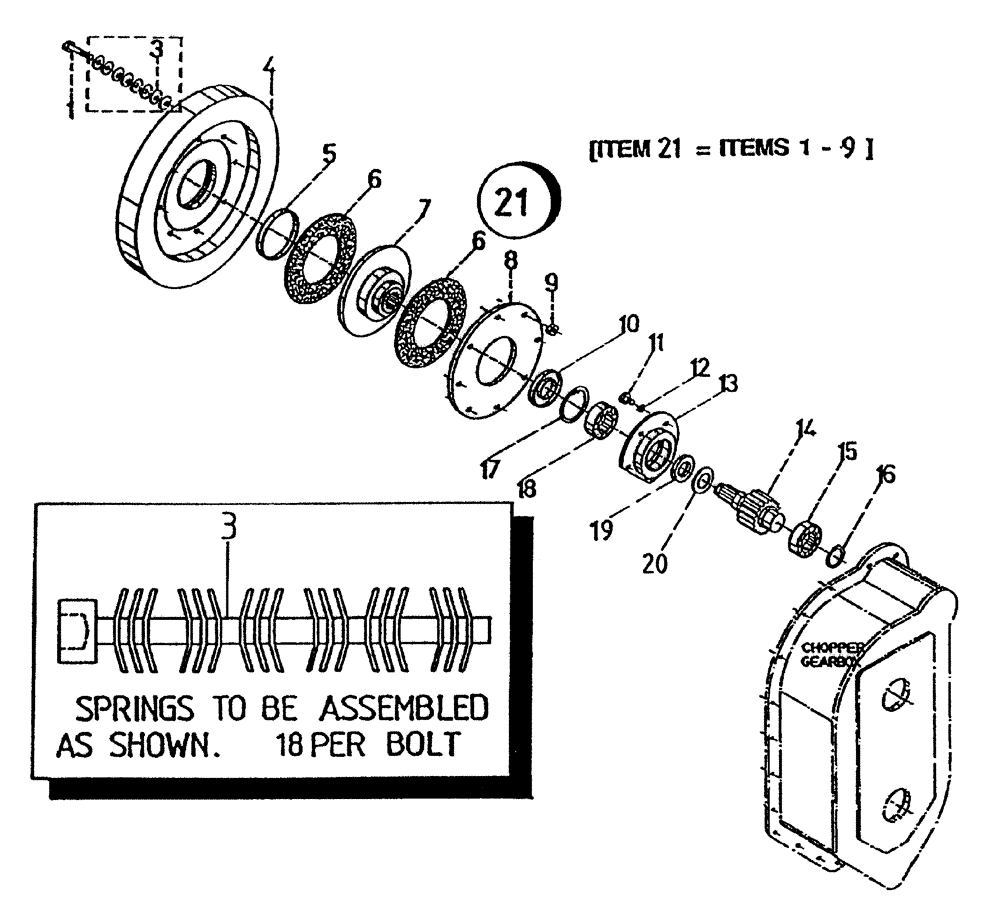

Запчасти Case IH 7700 (A02[80A]) - ROTARY CHOPPER FLYWHEEL AND GEARBOX Mainframe & Functioning Components

1

FC112075

SCREW,M12 x 1.75 x 75mm

BOLT

8шт.

Part of Clutch Assembly P/N 87240864

1шт.

3

00130076

WASHER

spring

144шт.

Part of Clutch Assembly P/N 87240864

1шт.

4

87240843

FLYWHEEL

1шт.

Part of Clutch Assembly P/N 87240864

1шт.

5

87220477

BRONZE BUSHING,116.15mm ID x 126.15mm OD x 12mm L

1шт.

Part of Clutch Assembly P/N 87240864

1шт.

6

87220475

SHIM,125mm ID x 220mm OD x 5.15mm Thk

2шт.

Part of Clutch Assembly P/N 87240864

1шт.

7

87220479

ADAPTER

1шт.

Part of Clutch Assembly P/N 87240864

1шт.

8

87220476

CLUTCH, PRESSURE PLA

1шт.

Part of Clutch Assembly P/N 87240864

1шт.

9

NA112000

NUT

8шт.

Part of Clutch Assembly P/N 87240864

1шт.

10

00100717

OIL SEAL

1шт.

11

FA112025

BOLT

6шт.

12

WB120000

WASHER

6шт.

13

87217721

BEARING HOUSING,90 mm ID x 110.06 mm OD x 60 mm

1шт.

14

87217726

GEAR

pinion

1шт.

15

00144101

BEARING

1шт.

16

CE055000

CIRCLIP

1шт.

17

CI100000

CIRCLIP

1шт.

18

00140425

BEARING

1шт.

19

00141225

NUT

1шт.

20

87229334

WASHER,46mm ID x 75mm OD x 4.37mm Thk

1шт.

21

87240864

FLYWHEEL

CLUTCH ASSEMBLY, Includes: Ref. 1-9

1шт.
