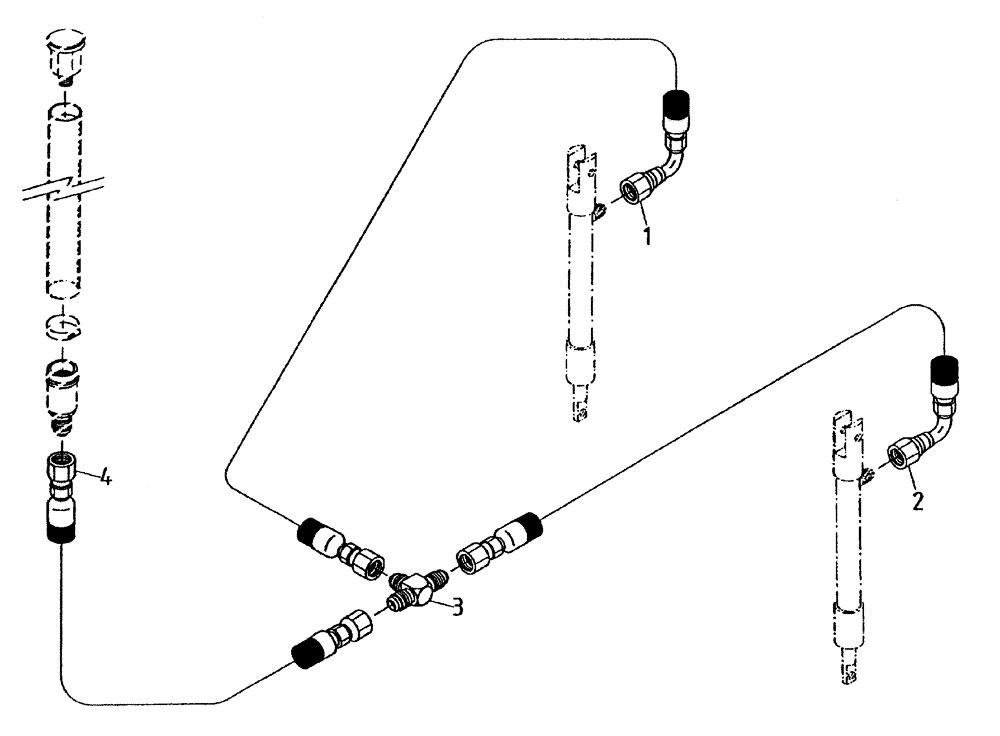

Запчасти Case IH 7700 (B07[20A]) - HYDRAULIC CIRCUIT {HEIGHT INDICATOR} Hydraulic Components & Circuits

1

86315420

HOSE ASSY.

MOUNT standard

1шт.

1

87237581

HOSE ASSY.

MOUNT optional

1шт.

2

86306167

HOSE,6.35mm ID x 1590mm L, SAE 100R17

HOSE, mount standard

1шт.

2

82745900

HOSE ASSY.,6.35mm ID x 1440mm L, SAE 100R17

MOUNT optional

1шт.

3

00400207

TEE

1шт.

4

81675600

HOSE

1шт.
