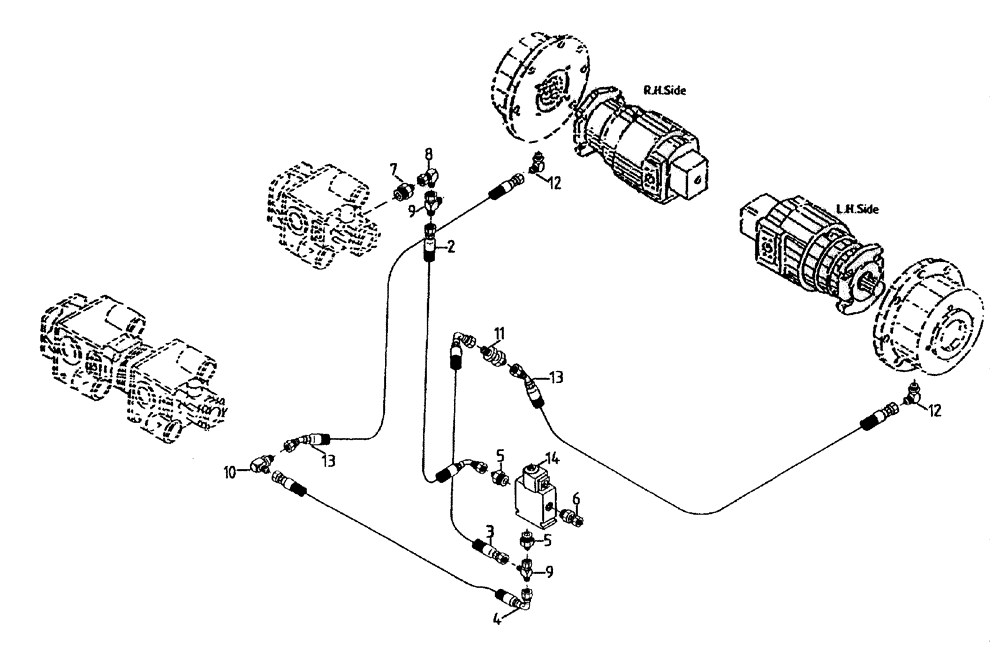

Запчасти Case IH 7700 (B07[10A]) - HYDRAULIC CIRCUIT {FAIL SAFE BRAKE} Hydraulic Components & Circuits

2

86327400

HOSE ASSY.

1шт.

3

82743000

HOSE

HOSE

1шт.

4

82745900

HOSE ASSY.,6.35mm ID x 1440mm L, SAE 100R17

1шт.

5

00400224

HYD CONNECTOR

NIPPLE

2шт.

6

00409421

HYD CONNECTOR

ADAPTOR

1шт.

7

00400074

HYD CONNECTOR

NIPPLE

1шт.

8

00402879

HYD CONNECTOR

ELBOW

1шт.

9

00404677

TEE

2шт.

10

00404781

HYD CONNECTOR

ELBOW

1шт.

11

00400070

HYD CONNECTOR

NIPPLE

1шт.

12

00405242

HYD CONNECTOR

ELBOW

2шт.

13

87234962

HOSE

2шт.

14

VALVE hydraulic, solenoid, refer to Figure B04[80A]

1шт.
