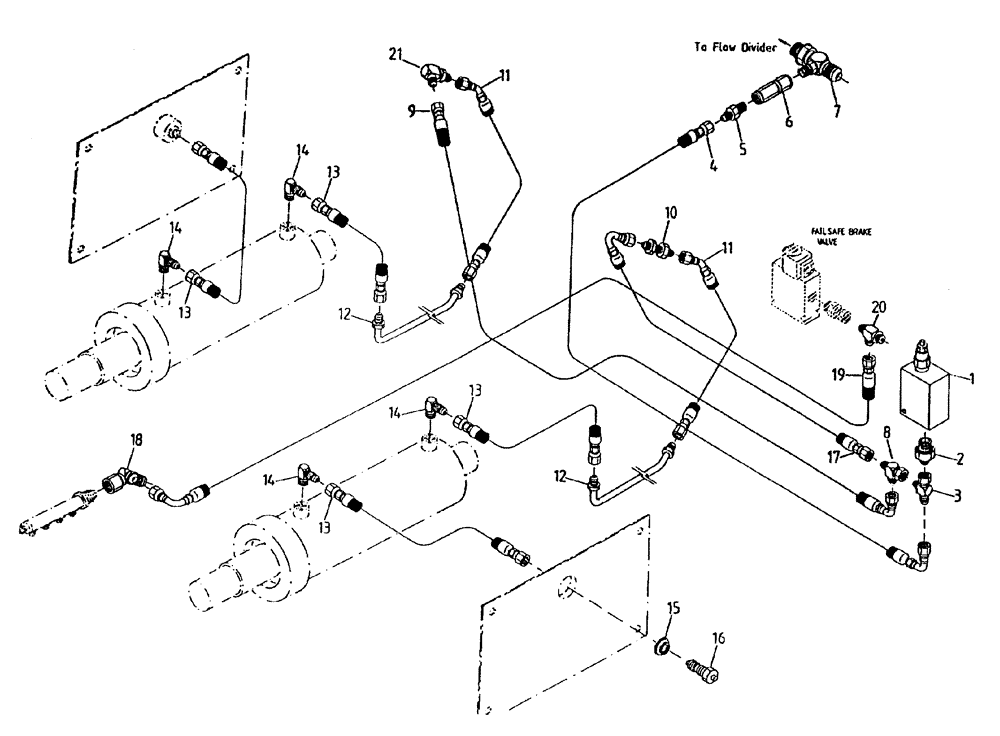

Запчасти Case IH 7700 (B06[45A]) - HYDRAULIC CIRCUIT {TRACK ADJUSTER} Hydraulic Components & Circuits

1

VALVE hydraulic, relief, refer to Figure B04[60A]

1шт.

2

00400073

HYD CONNECTOR

NIPPLE

1шт.

3

00408682

TEE

1шт.

4

82735100

HOSE

1шт.

5

00400165

HYD CONNECTOR

NIPPLE

1шт.

6

VALVE hydraulic, check, refer to Figure B04[45A]

1шт.

7

87220642

ASSEMBLY

TEE

1шт.

8

00404677

TEE

1шт.

9

81683100

HOSE,6.35mm ID x 1570mm L, SAE 100R1

1шт.

10

00400070

HYD CONNECTOR

NIPPLE

1шт.

11

87234963

HOSE

2шт.

12

87170700

TUBE,9.50 mm DIA

2шт.

13

87242731

HOSE

4шт.

14

00400189

HYD CONNECTOR

ELBOW

4шт.

15

00131478

WASHER

2шт.

16

00131479

VALVE

2шт.

17

82704900

HOSE,6.35mm ID x 530mm L, SAE 100R17

1шт.

18

00408644

TEE

1шт.

19

86313244

HOSE,9.53mm ID x 1300mm L, SAE 100R17

HOSE

1шт.

20

00408455

TEE

TEE

1шт.

21

00404781

HYD CONNECTOR

ELBOW

1шт.
