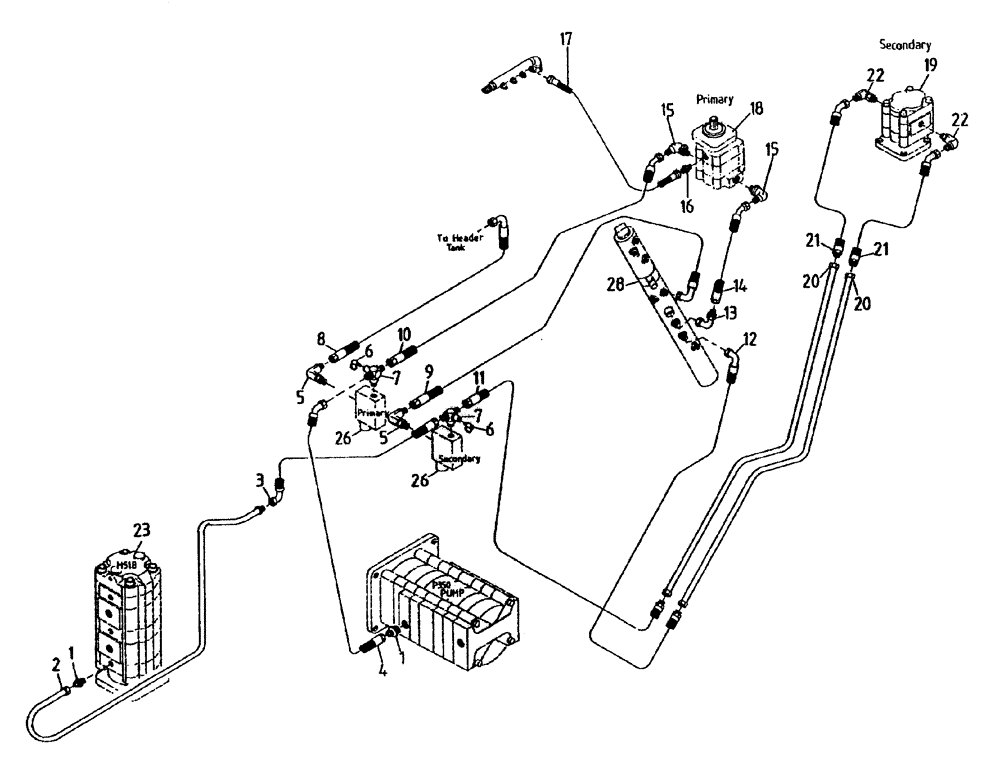

(B06[10A]) - HYDRAULIC CIRCUIT {PRIMARY/SECONDARY FIXED EXTRACTOR}

Запчасти Case IH 7700 (B06[10A]) - HYDRAULIC CIRCUIT {PRIMARY/SECONDARY FIXED EXTRACTOR} Hydraulic Components & Circuits

Схема запчастей Case IH 7700 - (B06[10A]) - HYDRAULIC CIRCUIT {PRIMARY/SECONDARY FIXED EXTRACTOR} Hydraulic Components & Circuits
23
7
11
22
3
13
15
20
12
26
16
20
21
9
8
21
26
15
5
7
2
19
18
1
17
10
6
4
14
1
22
28
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00400234

HYD CONNECTOR

NIPPLE

2шт.

2

87231865

TUBE,25.40 mm DIA

1шт.

3

82717500

HOSE

1шт.

4

87231898

HOSE

1шт.

5

00400245

HYD CONNECTOR

ELBOW

2шт.

6

00405498

SCREW ON COUPLING

test point

2шт.

7

87220629

TEE

2шт.

8

82733200

HOSE

1шт.

9

81680400

HOSE ASSY.

1шт.

10

87221386

HOSE

1шт.

11

87237591

HOSE

1шт.

12

87237593

HOSE

1шт.

13

00403944

HYD CONNECTOR

bend

1шт.

14

87221388

HOSE

1шт.

15

00400097

HYD CONNECTOR

ELBOW

2шт.

16

00402235

HYD CONNECTOR

NIPPLE

1шт.

17

86310533

HYDRAULIC HOSE

1шт.

18

MOTOR hydraulic, refer to Figure B02[75A]

1шт.

19

MOTOR hydraulic, refer to Figure B02[55A]

1шт.

20

87233525

TUBE,755 mm L

2шт.

21

87233532

HOSE

HOSE, elevator, standard

2шт.

21

87239116

HOSE, elevator, extended

2шт.

22

00400246

HYD CONNECTOR

ELBOW

2шт.

23

MOTOR hydraulic, refer to Figures B02[60A] and B02[65A]

1шт.

26

VALVE hydraulic, solenoid, relief, refer to Figure B04[55A]

1шт.

28

87231730

VENT MANIFOLD

1шт.
