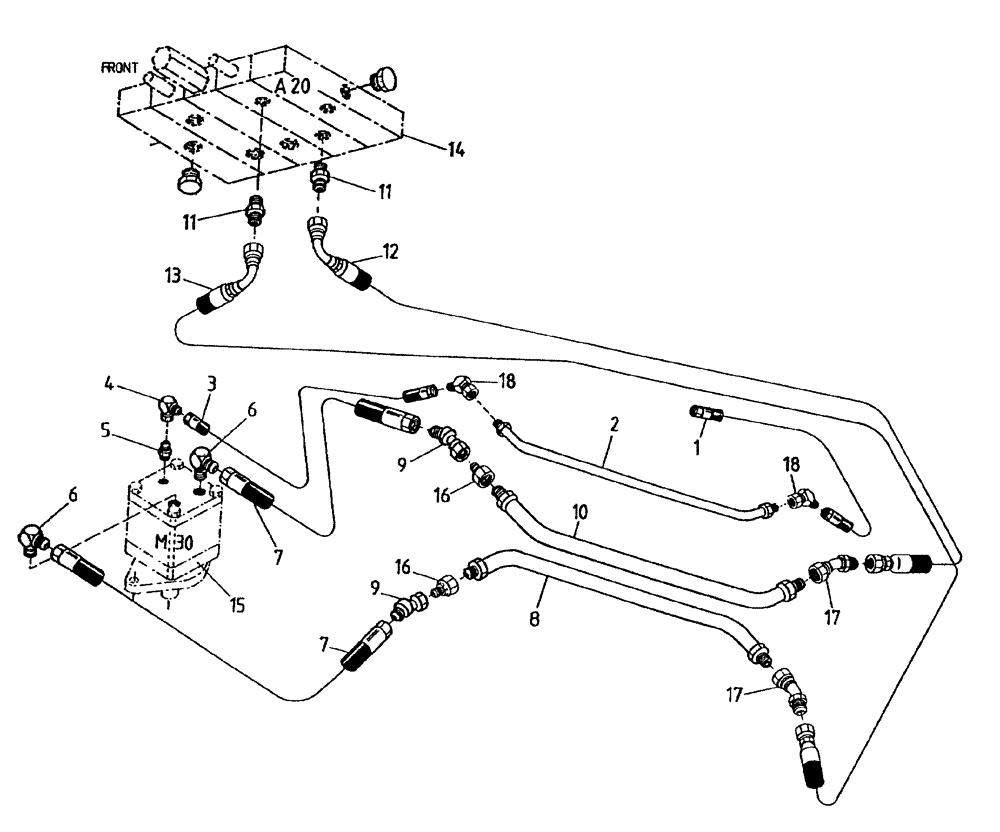

Запчасти Case IH 7700 (B05[80A]) - HYDRAULIC CIRCUIT {STANDARD TOPPER} Hydraulic Components & Circuits

1

82712800

HOSE

1шт.

2

87219424

TUBE,9.52 mm OD x 1355 mm, 175 mm L

1шт.

3

82709900

HOSE,6.35mm ID x 1526mm L, SAE 100R17

HOSE

1шт.

4

00402879

HYD CONNECTOR

ELBOW

1шт.

5

00402235

HYD CONNECTOR

NIPPLE

1шт.

6

00400242

HYD CONNECTOR

ELBOW

2шт.

7

83126300

HOSE,13.00 mm ID x 1541.00 mm, SAE 100R16

2шт.

8

87238281

TUBE,1" OD

1шт.

9

00404511

HYD CONNECTOR

ELBOW

2шт.

10

87238279

TUBE,1" OD

1шт.

11

00400232

HYD CONNECTOR

NIPPLE

2шт.

12

87244031

HOSE

1шт.

13

87244011

HOSE

1шт.

14

VALVE hydraulic, refer to Figure B04[00A]

1шт.

15

MOTOR hydraulic, refer to Figure B02[50A]

1шт.

16

00409326

ADAPTER

reducer

2шт.

17

00407240

HYD CONNECTOR

bend

2шт.

18

00405173

HYD CONNECTOR

ELBOW

2шт.
