(B05[20A]) - HYDRAULIC SUCTION LINES {TANDEM TRANSMISSION} {108/125/6CT PRIMARY/SECONDARY FIXED EXTRACTOR}

Запчасти Case IH 7700 (B05[20A]) - HYDRAULIC SUCTION LINES {TANDEM TRANSMISSION} {108/125/6CT PRIMARY/SECONDARY FIXED EXTRACTOR} Hydraulic Components & Circuits

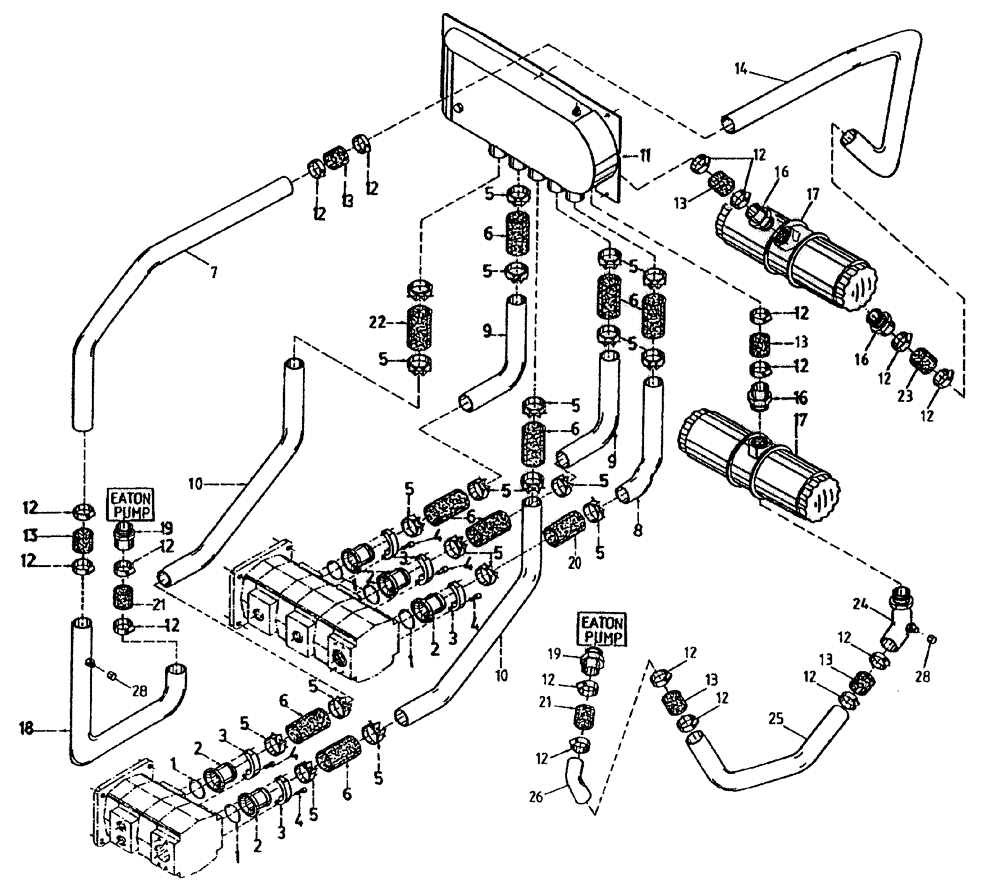

Схема запчастей Case IH 7700 - (B05[20A]) - HYDRAULIC SUCTION LINES {TANDEM TRANSMISSION} {108/125/6CT PRIMARY/SECONDARY FIXED EXTRACTOR} Hydraulic Components & Circuits
16
2
1
5
12
5
13
5
5
21
5
6
12
17
22
8
16
6
12
13
12
26
12
6
3
4
10
4
25
5
12
12
20
5
13
2
1
18
5
12
3
13
6
16
4
12
28
19
12
2
5
12
1
24
10
1
6
2
4
14
9
5
17
12
12
3
12
5
23
28
13
6
5
19
5
2
5
13
12
7
3
5
11
12
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00100106

O-RING

5шт.

2

87219650

HYD CONNECTOR

ADAPTOR

5шт.

3

00400267

SPECIAL CLAMP

5шт.

4

00604534

SCREW

20шт.

5

00180541

HOSE CLAMP

20шт.

6

82204300

HOSE,50.8mm ID x 102mm L

8шт.

7

87235282

TUBE

1шт.

8

87203600

TUBE

TUBE

1шт.

9

86957900

TUBE

TUBE

2шт.

10

87203500

TUBE,50.80 mm OD

2шт.

11

87234729

TANK

1шт.

12

00152128

HOSE CLAMP

18шт.

13

86312272

HOSE,38.10 mm ID x 110.00 mm

6шт.

14

87235281

TUBE

1шт.

16

00402123

HYD CONNECTOR

HOSETAIL

3шт.

17

FILTER suction, refer to Figure B08[00A]

1шт.

18

87220610

FRAME,38.10 mm OD

TUBE

1шт.

19

00408396

ADAPTER

HOSETAIL

2шт.

20

87219083

MANIFOLD

1шт.

21

82217600

HOSE,38.10 mm ID x 80.00 mm

2шт.

22

86315149

HOSE,140.00 mm

1шт.

23

86695400

HYDRAULIC HOSE,1.50" ID

1шт.

24

87232815

ADAPTER

1шт.

25

87233637

TUBE

1шт.

26

87233997

TUBE,38 mm OD

1шт.

28

00400143

HYD CONNECTOR

NUT, cap

2шт.
