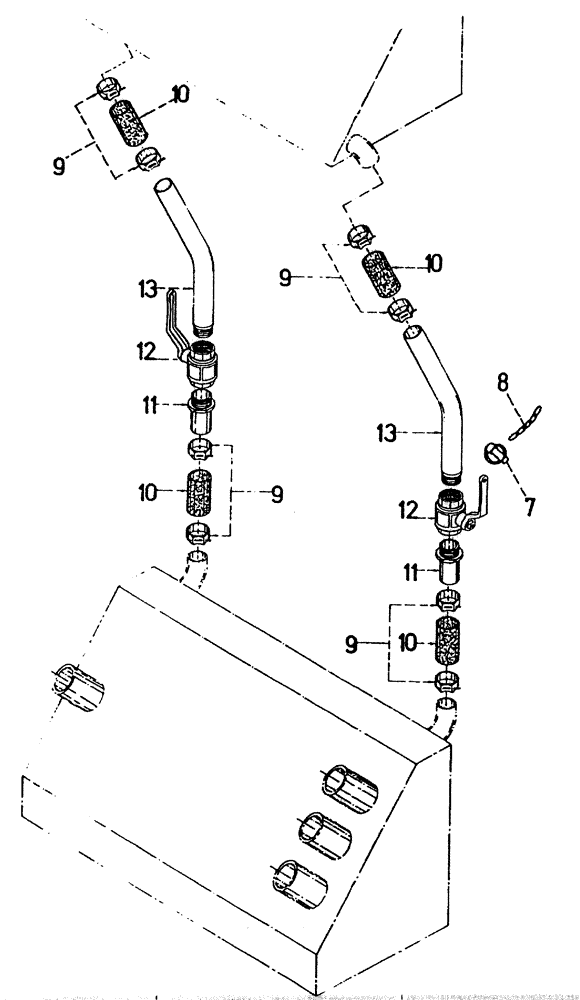

Запчасти Case IH 7700 (B05[00A]) - HYDRAULIC SUCTION LINES {ROTARY CHOPPER} Hydraulic Components & Circuits

7

00606627

PIN

lynch

2шт.

8

87240807

CHAIN,Assembly, Incl Lynch Pin

CHAIN

2шт.

9

00180541

HOSE CLAMP

8шт.

10

83130600

HOSE,50.8mm ID x 152mm L, SAE J20R1

4шт.

11

87229464

TUBE,50.80 mm OD x 226 mm L

ADAPTOR

2шт.

12

87240531

HYDRAULIC VALVE

ball

2шт.

13

87229462

TUBE,2.00" DIA

TUBE

2шт.
