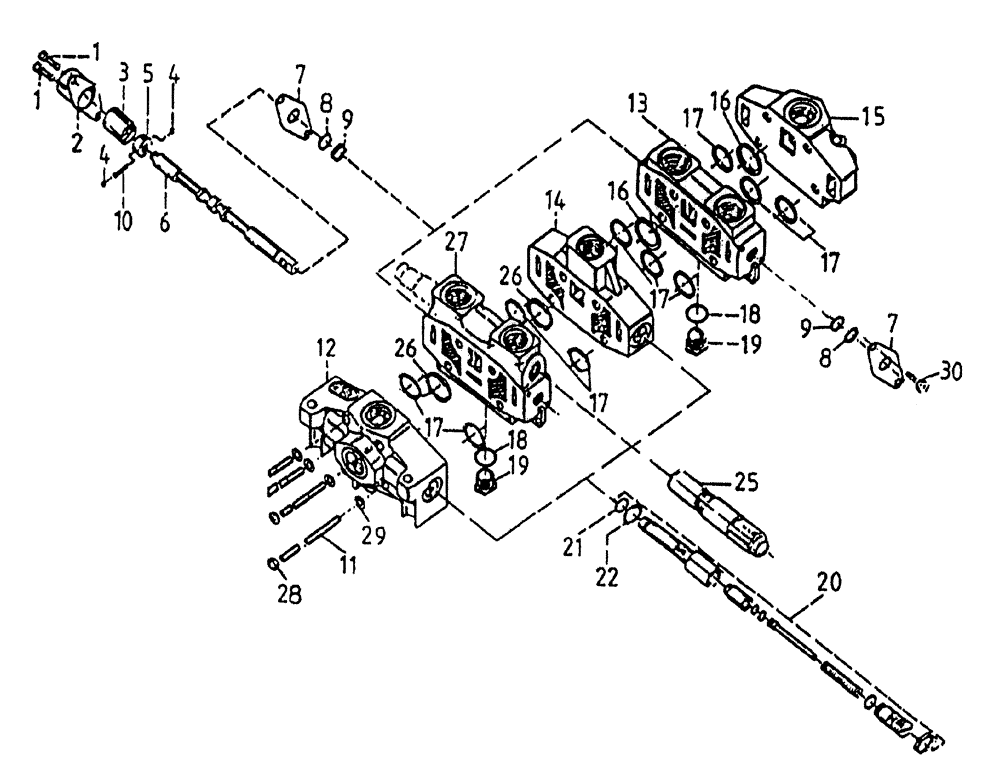

Запчасти Case IH 7700 (B04[05A]) - HYDRAULIC VALVE A20 {SHREDDER TOPPER AND ELEVATOR} Hydraulic Components & Circuits

1

00400483

SCREW

4шт.

2

00400474

CAP

2шт.

3

00400489

SLEEVE

2шт.

4

00400488

BALL

4шт.

5

00400486

RETAINER

2шт.

6

SPOOL

SPOOL

NOT SOLD

1шт.

7

00400479

PLATE

PLATE

4шт.

8

00407425

CROWN WHEEL

RING

4шт.

9

00400477

SEAL

RING quad

4шт.

10

00400487

SPRING

2шт.

11

00407657

STUD

KIT stud

1шт.

12

00400490

HOUSING

1шт.

13

00407641

HOUSING

SPOOL and HOUSING

1шт.

14

00407642

HOUSING

1шт.

15

00407643

HOUSING

HOUSING

1шт.

16

00400443

O-RING

2шт.

17

00400484

O-RING

10шт.

18

00400476

O-RING

2шт.

19

00407126

CAP

CAP

2шт.

20

00400471

VALVE PRESSURE RELIE

2шт.

21

00403723

O-RING

2шт.

22

00403724

GASKET

WASHER

2шт.

25

00407656

VALVE PRESSURE RELIE

2шт.

26

00403375

O-RING

2шт.

27

00408903

HYDRAULIC VALVE

SPOOL, HOUSING

1шт.

28

00407653

NUT

NUT

8шт.

29

00407652

WASHER

WASHER

8шт.

30

00407433

SCREW

4шт.

31

00408645

CONTROL VALVE

ASSEMBLY

1шт.
