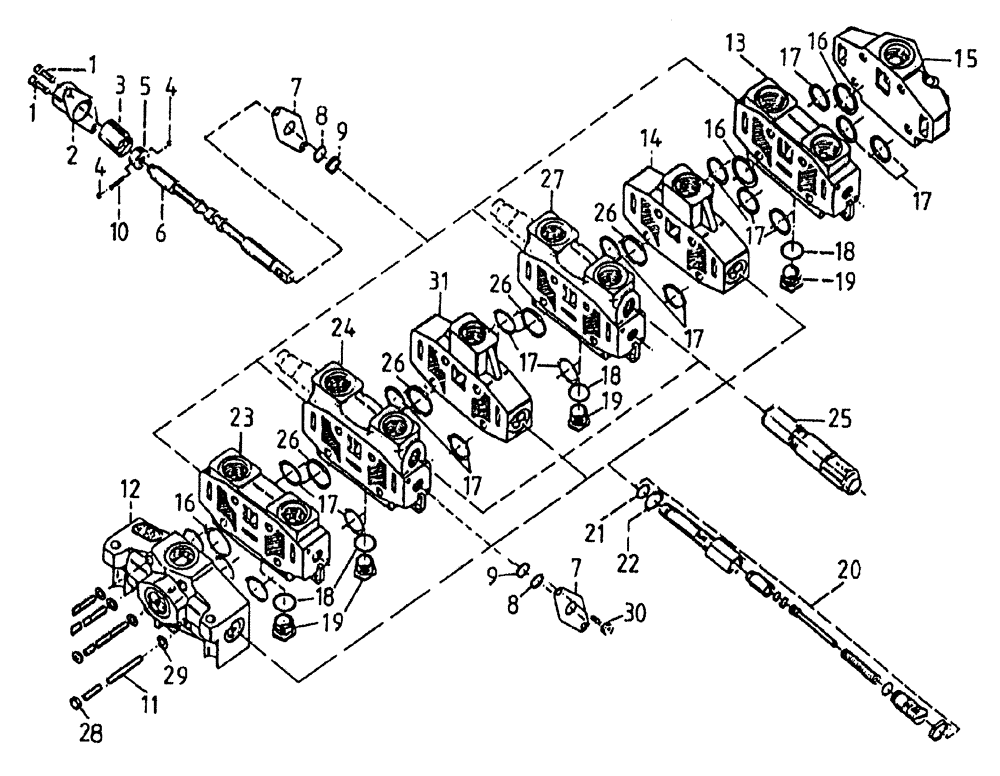

Запчасти Case IH 7700 (B04[02A]) - HYDRAULIC VALVE A20 {SHREDDER TOPPER, ELEVATOR AND SIDETRIM KNIVES} Hydraulic Components & Circuits

1

00400483

SCREW

8шт.

2

00400474

CAP

4шт.

3

00400489

SLEEVE

4шт.

4

00400488

BALL

8шт.

5

00400486

RETAINER

4шт.

6

SPOOL

SPOOL

NOT SOLD

1шт.

7

00400479

PLATE

PLATE

8шт.

8

00407425

CROWN WHEEL

RING

8шт.

9

00400477

SEAL

RING quad

8шт.

10

00400487

SPRING

4шт.

11

00408904

STUD

KIT

1шт.

12

00400490

HOUSING

1шт.

13

00407641

HOUSING

SPOOL and HOUSING

1шт.

14

00407642

HOUSING

1шт.

15

00407426

VALVE BODY

HOUSING

1шт.

16

00400443

O-RING

3шт.

17

00400484

O-RING

17шт.

18

00403375

O-RING

4шт.

19

00407126

CAP

CAP

4шт.

20

00400471

VALVE PRESSURE RELIE

3шт.

21

00407432

O-RING

3шт.

22

00403724

GASKET

WASHER

3шт.

23

00402940

HYDRAULIC VALVE

SPOOL, HOUSING

1шт.

24

00407077

HOUSING

SPOOL and HOUSING

1шт.

25

00407656

VALVE PRESSURE RELIE

4шт.

26

00403375

O-RING

4шт.

27

00408909

VALVE

SPOOL, HOUSING

1шт.

28

00407653

NUT

NUT

8шт.

29

00407652

WASHER

WASHER

8шт.

30

00407433

SCREW

8шт.

31

00407903

HOUSING

1шт.

32

00408901

CONTROL VALVE

ASSEMBLY

1шт.
