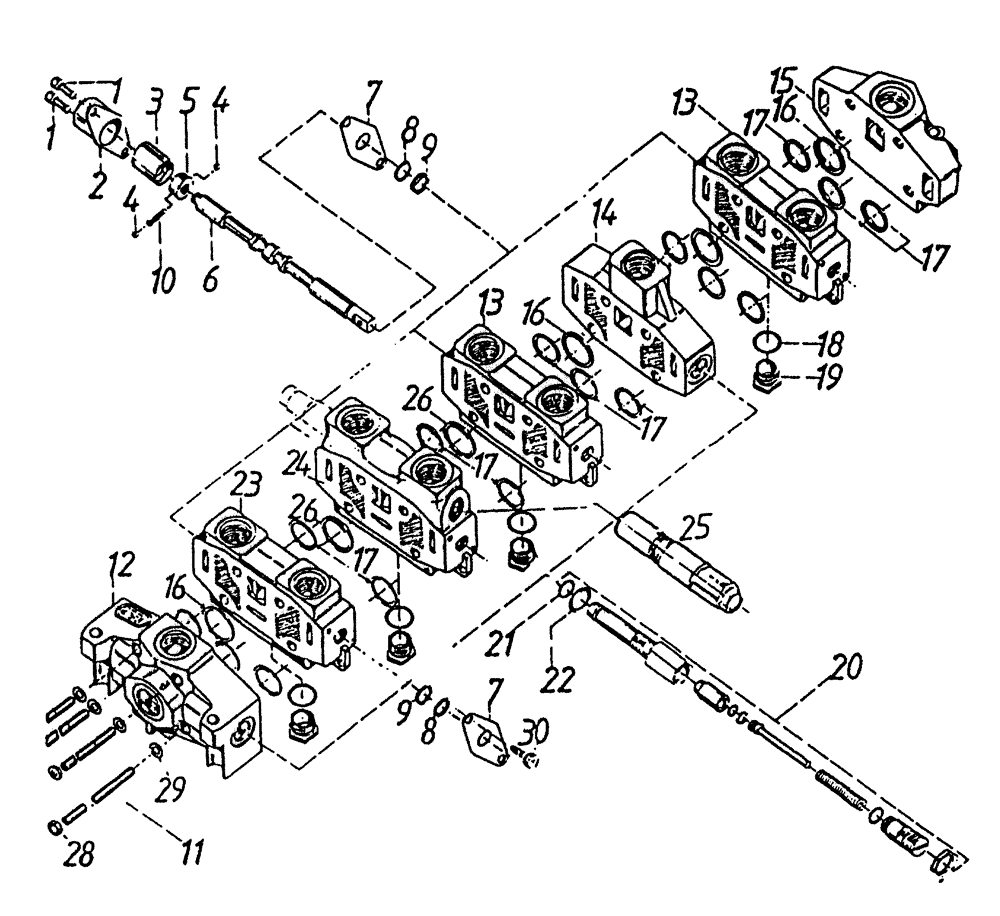

Запчасти Case IH 7700 (B04[00A]) - HYDRAULIC VALVE A20 {STANDARD TOPPER, ELEVATOR AND SIDETRIM KNIVES} Hydraulic Components & Circuits

1

00400483

SCREW

8шт.

2

00400474

CAP

4шт.

3

00400489

SLEEVE

4шт.

4

00400488

BALL

8шт.

5

00400486

RETAINER

4шт.

6

SPOOL

SPOOL

NOT SOLD

1шт.

7

00400479

PLATE

PLATE

12шт.

8

00407425

CROWN WHEEL

RING

8шт.

9

00400477

SEAL

RING quad

4шт.

10

00400487

SPRING

4шт.

11

00407650

STUD

KIT

1шт.

12

00400490

HOUSING

1шт.

13

00407641

HOUSING

SPOOL and HOUSING

2шт.

14

00407642

HOUSING

1шт.

15

00407426

VALVE BODY

HOUSING

1шт.

16

00400443

O-RING

4шт.

17

00400484

O-RING

16шт.

18

00403375

O-RING

4шт.

19

00407126

CAP

CAP

4шт.

20

00400471

VALVE PRESSURE RELIE

2шт.

21

00407432

O-RING

2шт.

22

00403724

GASKET

WASHER

2шт.

23

00402940

HYDRAULIC VALVE

SPOOL, HOUSING

1шт.

24

00407077

HOUSING

SPOOL and HOUSING

1шт.

25

00407656

VALVE PRESSURE RELIE

2шт.

26

00403375

O-RING

2шт.

28

00407653

NUT

NUT

4шт.

29

00407652

WASHER

WASHER

4шт.

30

00407433

SCREW

8шт.

31

00407243

SEAL KIT

1шт.

35

00407076

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSEMBLY

1шт.
