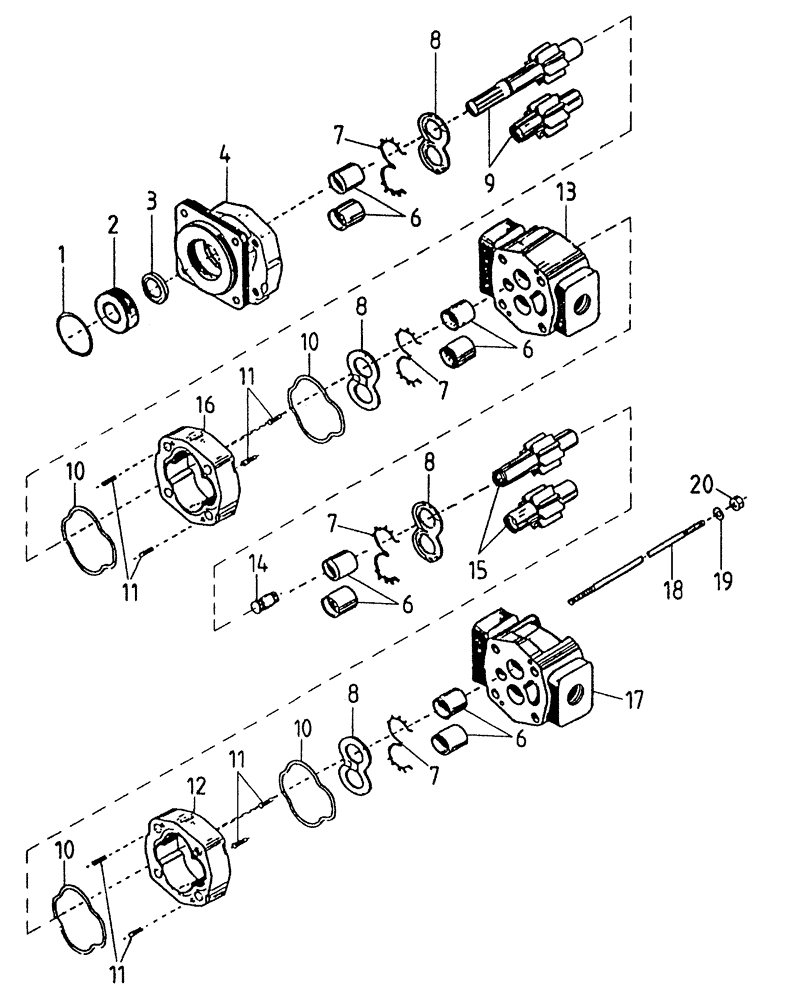

Запчасти Case IH 7700 (B03[60A]) - HYDRAULIC PUMP {125/6CT/L10 3 BLADE CHOPPER AND PRIMARY VARIABLE EXTRACTOR} Hydraulic Components & Circuits

1

00400629

RING

snap

1шт.

2

00408709

BALL BEARING

1шт.

3

00400631

SEAL

1шт.

4

00408705

COVER

COVER end

1шт.

6

00407034

BUSHING

8шт.

7

00407036

SEAL KIT

4шт.

8

00409394

THRUST PLATE

4шт.

9

00407386

GEAR SET

1шт.

10

00407038

SEAL

GASKET

4шт.

11

00407701

DOWEL

PIN

16шт.

12

00408706

TRANSMISSION HOUSING

1шт.

13

00408710

CARRIER

1шт.

14

00407693

SHAFT

1шт.

15

00408702

GEAR

SET

1шт.

16

00407697

TRANSMISSION HOUSING

1шт.

17

00408711

COVER

COVER end

1шт.

18

00403230

STUD

4шт.

19

00400531

WASHER

4шт.

20

00400532

NUT

4шт.

21

00408713

SEAL KIT

1шт.

22

00409207

HYDRAULIC PUMP

ASSEMBLY

1шт.
