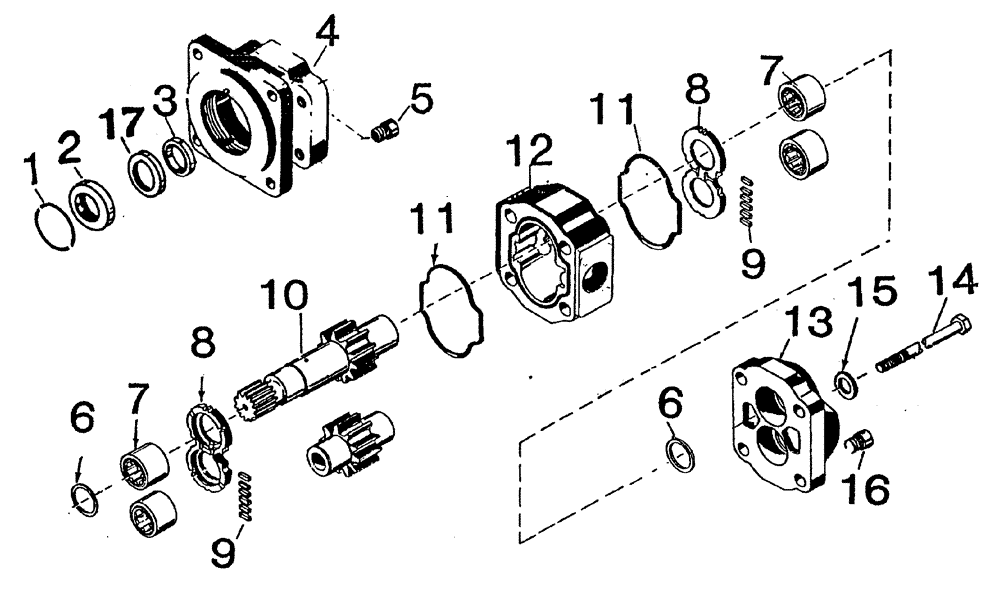

Запчасти Case IH 7700 (B02[50]) - HYDRAULIC MOTOR, SECONDARY EXTRACTOR FAN, M50A Hydraulic Components & Circuits

1

00400581

RING

snap

1шт.

2

00144114

BALL BEARING

1шт.

3

00400621

SEAL

1шт.

4

00400575

HYDRAULIC PUMP

COVER end

1шт.

5

00403767

PLUG

PLUG

1шт.

6

00400576

SEAL

2шт.

7

00400577

ROLLER

4шт.

8

00400589

PLATE

thrust

2шт.

9

00400517

SEAL

1шт.

10

00400626

GEAR

SET

1шт.

11

00400590

GASKET

SEAL

2шт.

12

00404487

TRANSMISSION HOUSING

1шт.

13

00400582

FILTER ASSY

COVER end

1шт.

14

00400620

BOLT

SCREW

4шт.

15

00400531

WASHER

4шт.

16

00400608

CHECK VALVE

ASSY.

2шт.

17

00407689

ASSEMBLY

RETAINER seal

1шт.

18

00404325

MOTOR, HYDRAULIC

ASSY.

1шт.

19

00407796

SEAL KIT

1шт.
