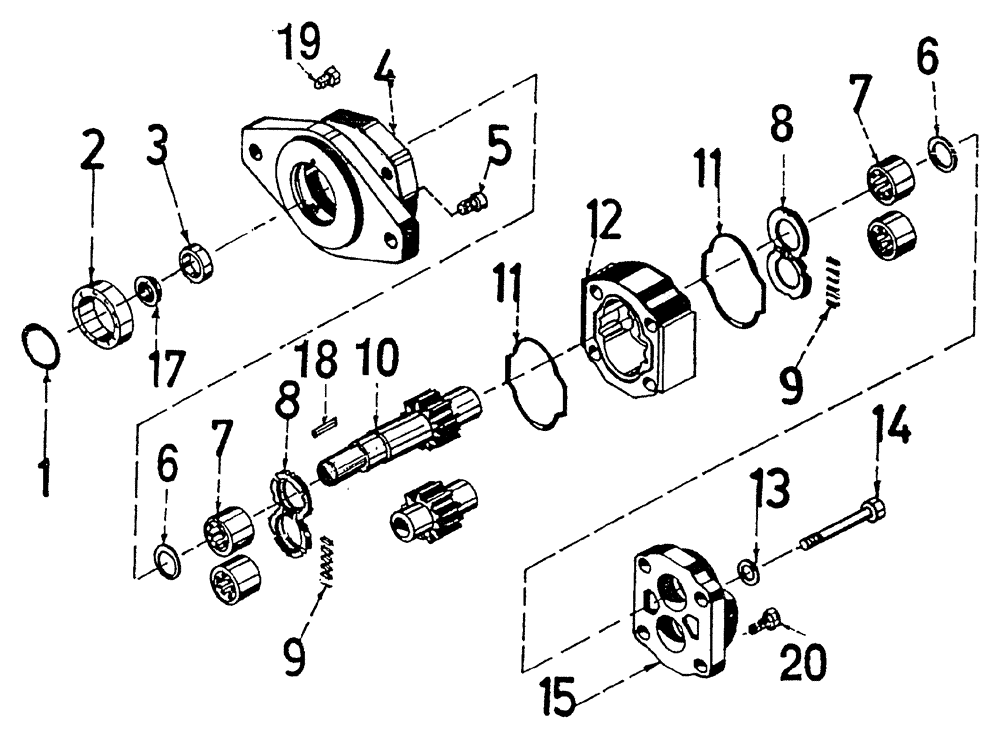

Запчасти Case IH 7700 (B02[40]) - HYDRAULIC MOTOR, TOPPER SEVERING, M30 1 1/4" Hydraulic Components & Circuits

1

00400511

COUPLING

RING snap

1шт.

2

00144115

BALL BEARING

1шт.

3

00400510

OIL SEAL

1шт.

4

00407441

HOUSING

FLANGE

1шт.

5

00400608

CHECK VALVE

CHECK ASSY.

2шт.

6

00400507

SEAL

RING

2шт.

7

00400508

BEARING

4шт.

8

00400516

RETAINER

PLATE thrust

2шт.

9

00400517

SEAL

STRIP

1шт.

10

00400546

GEAR

SET

1шт.

11

00400518

GASKET

2шт.

12

00400545

HOUSING

1шт.

13

00400531

WASHER

4шт.

14

00400548

BOLT

SCREW

4шт.

15

00400514

COVER ASSY

end, ported

1шт.

17

00400549

RETAINER

seal

1шт.

18

00400547

KEY

1шт.

19

00407395

ASSEMBLY

PLUG socket head

1шт.

20

00403767

PLUG

PLUG

1шт.

22

00405382

MOTOR, HYDRAULIC

ASSY.

1шт.

23

00407800

SEAL KIT

1шт.
