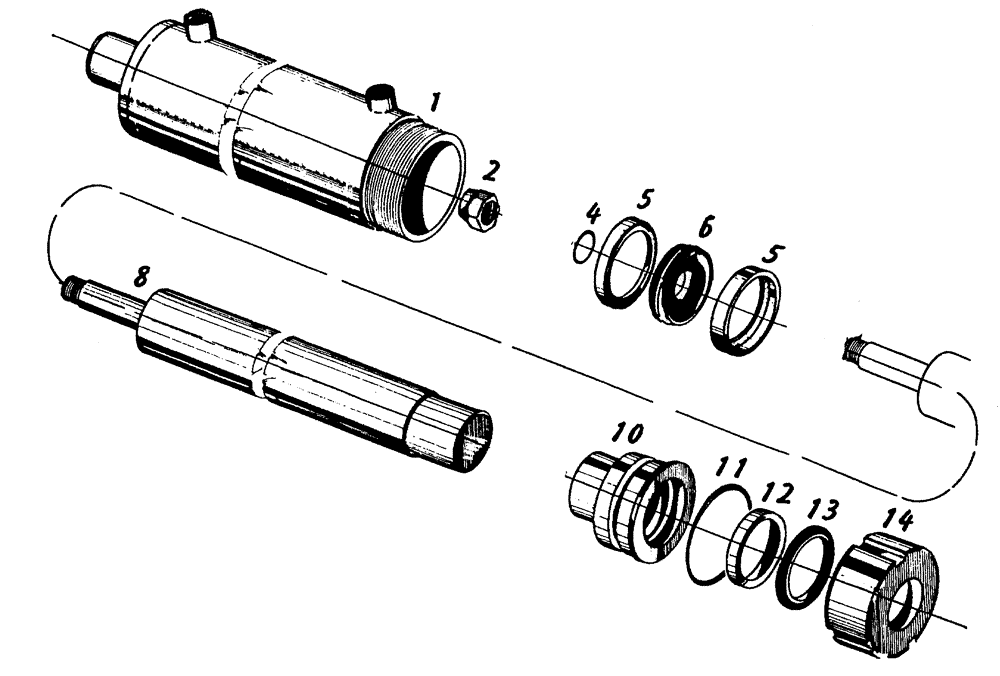

Запчасти Case IH 7700 (B01[32]) - HYDRAULIC CYLINDER, TRACK ADJUSTER Hydraulic Components & Circuits

1

87112800

KIT,101.6mm Bore Dia

HOUSING

1шт.

2

00606612

NUT

1шт.

2

00607316

PIN

roll

1шт.

4

00100019

O-RING

1шт.

5

00100788

OIL SEAL

2шт.

6

87219812

CYLINDER,101.54mm Bore, 25.5mm Rod, 60mm W

PISTON

1шт.

8

87113200

HYDRAULIC CYLINDER,57.15mm OD x 434mm L

SHAFT

1шт.

10

87214820

CYLINDER HEAD

GLAND, 7131

1шт.

11

00100045

O-RING

SEAL

1шт.

12

00100718

OIL SEAL

1шт.

13

00100719

SEAL

WIPER

1шт.

14

87113600

NUT

1шт.

15

87112700

CYLINDER

ASSY

1шт.

15

87222051

SEAL KIT

1шт.
