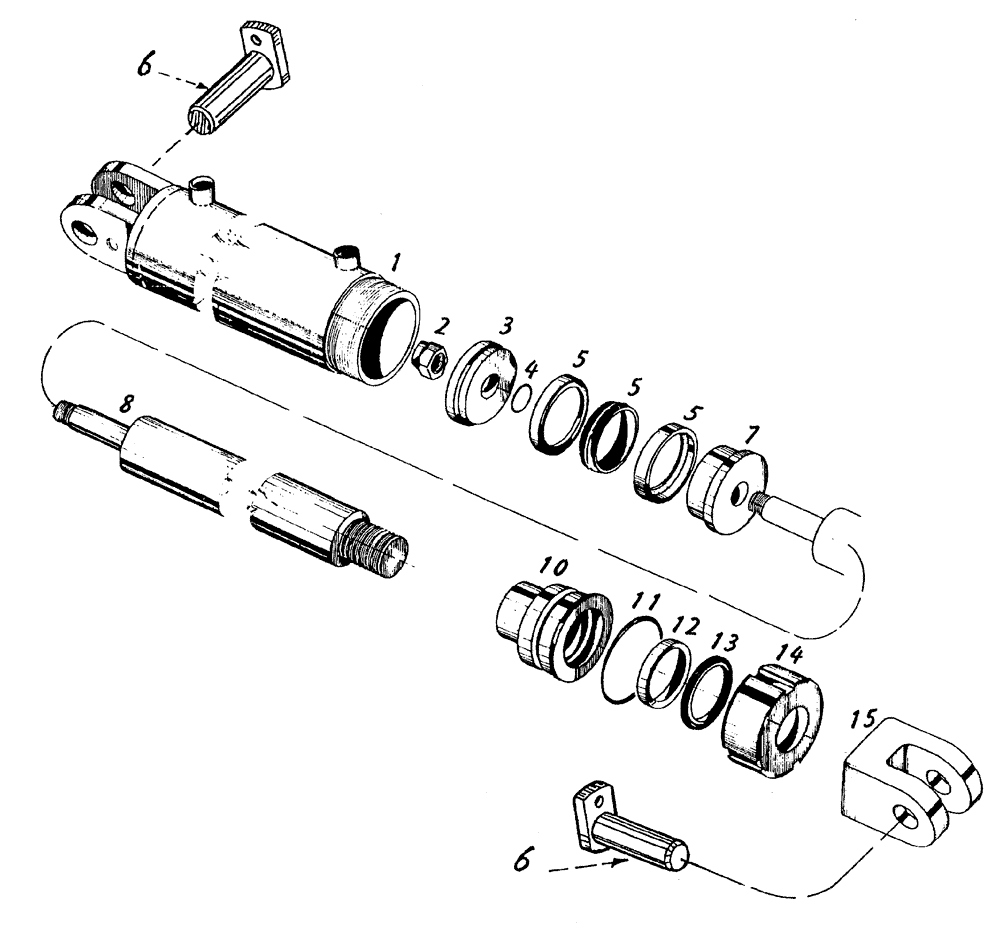

Запчасти Case IH 7700 (B01[01]) - HYDRAULIC CYLINDER, TOPPER ARMS Hydraulic Components & Circuits

1

86936700

CYLINDER,79mm Bore Dia

BODY

1шт.

2

00607933

LOCK NUT

1шт.

3

86787100

PISTON

RETAINER

1шт.

4

00100119

O-RING

1шт.

5

00100715

OIL SEAL

1шт.

6

86788000

PIN,25.4mm OD x 75mm L

2шт.

7

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

PISTON

1шт.

8

87045500

SHAFT

1шт.

10

87214804

CYLINDER HEAD

CAP

1шт.

11

00100110

O-RING

1шт.

12

00100711

WIPER SEAL

1шт.

13

00100722

WIPER SEAL

WIPER

1шт.

14

87045700

SPECIAL NUT

1шт.

15

86786800

CLEVIS

1шт.

16

87213917

SEAL KIT

1шт.

16

86936600

CYLINDER ASSY.,Double Acting, 44.45mm Rod

1шт.
