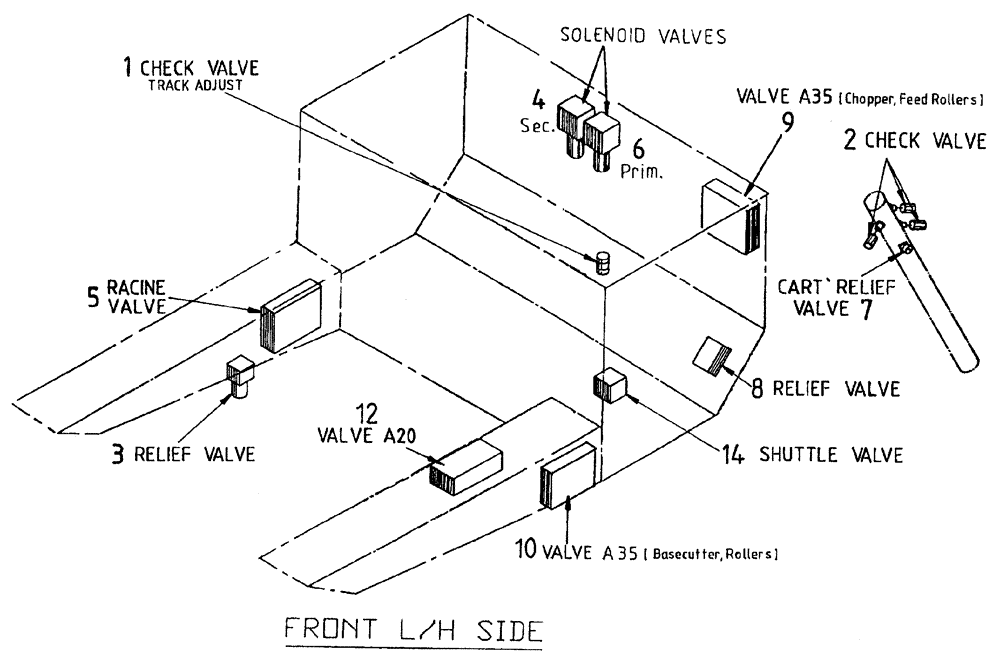

Запчасти Case IH 7700 (B00[09]) - HYDRAULIC VALVES Hydraulic Components & Circuits

1

VALVE, see Figure B04 [36]

1шт.

2

VALVE, see Figure B04 [37]

1шт.

3

VALVE, see Figure B04 [41]

1шт.

4

VALVE

1шт.

Refer Page B05.55

1шт.

5

VALVE, see Figure B04 [30]

1шт.

6

VALVE

1шт.

Refer Page B05.55

1шт.

7

VALVE, see Figure B04 [42]

1шт.

8

VALVE, see Figure B04 [39]

1шт.

Up to and including 7474

1шт.

8

VALVE, see Figure B04 [40]

1шт.

7489 and on

1шт.

9

VALVE, see Figure B04 [20]

1шт.

10

VALVE, see Figure B04 [21]

1шт.

12

VALVE, see Figure B04 [11]

1шт.

12

VALVE, see Figure B04 [10]

1шт.

14

VALVE, see Figure B04 [43]

1шт.
