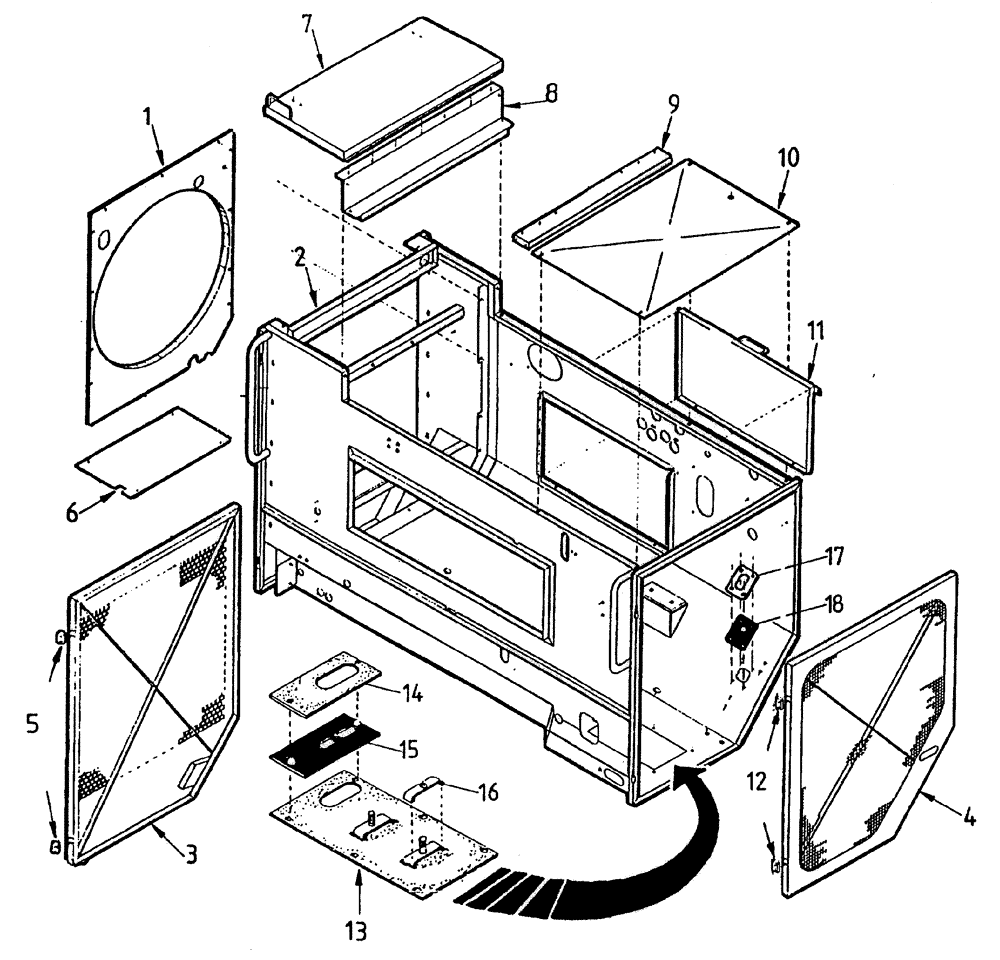

Запчасти Case IH 7700 (C03[00]) - ENGINE COMPARTMENT Engine & Engine Attachments

1

87224978

SHROUD

SHROUD

1шт.

2

86943200

COMPARTMENT

1шт.

3

86969600

DOOR ASSY.

1шт.

3

00607939

SPRING

CATCH

1шт.

3

00135872

SOFT TRIM

PINCHWELD with rubber

1шт.

4

86977100

DOOR ASSY.

1шт.

4

00180492

SEAL

PINCHWELD with rubber

1шт.

5

86983900

HINGE

2шт.

6

86977700

COVER

COVER

1шт.

7

86958000

COVER

1шт.

7

86958200

HINGE

1шт.

8

86948800

COVER

COVER

1шт.

9

86717800

BRACE

1шт.

10

86955900

COVER PLATE

COVER without air conditioning

1шт.

10

87222500

COVER PLATE

COVER with air conditioning

1шт.

10

00154532

WEATHERSTRIP

EDGING rubber

1шт.

11

86718100

COVER ASSY

1шт.

12

87222427

HINGE

2шт.

7478 and on

1шт.

13

87136900

COVER

COVER without 2-speed valve

1шт.

13

87137000

COVER

COVER with 2-speed valve

1шт.

14

87217339

RETAINER

RETAINER seal

1шт.

15

87217340

SEAL

1шт.

16

87220662

CLAMP

2шт.

17

87213656

COVER PLATE

COVER plate

1шт.

18

87219224

PLATE

PLATE

1шт.
