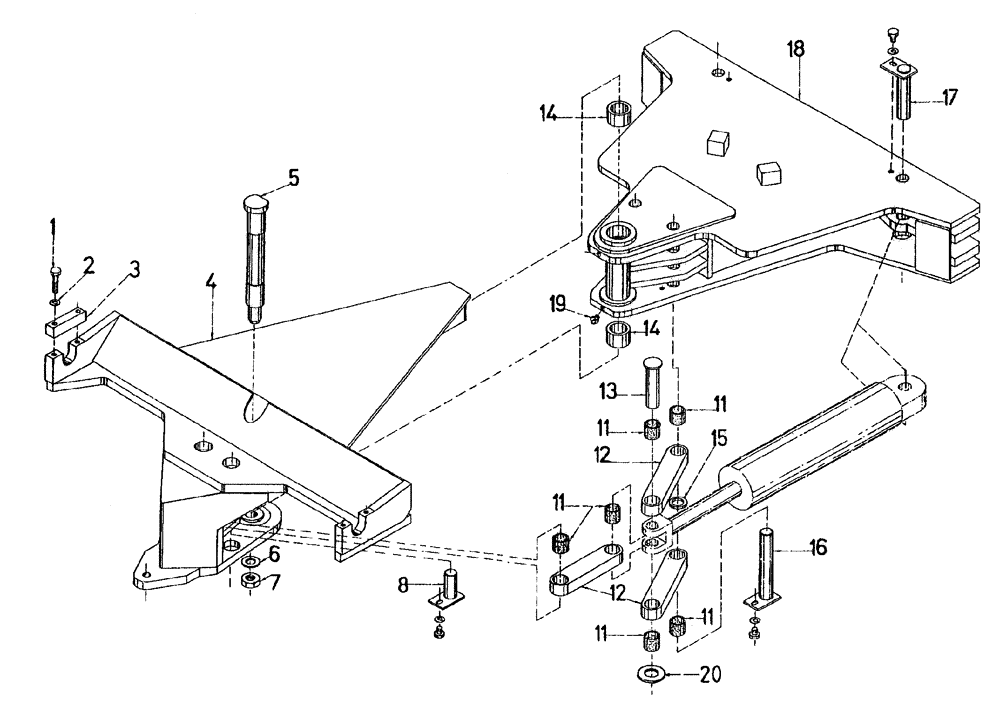

Запчасти Case IH 7700 (A02[37]) - ELEVATOR SLEW MECHANISM, UP TO AND INCLUDING SERIAL # 7658 Mainframe & Functioning Components

1

00601519

BOLT

4шт.

2

00605829

WASHER

4шт.

3

86725100

RETAINER

2шт.

4

86723301

FRAME

1шт.

5

86725000

PIN,44.99mm OD x 370mm L

1шт.

6

86724800

WASHER

1шт.

7

00606022

LOCK NUT

1шт.

8

87220215

PIN,31.75mm OD x 80mm L

2шт.

8

FA112020

BOLT

2шт.

8

WA120000

WASHER

2шт.

8

WB120000

WASHER

2шт.

11

87220207

BUSHING,31.8mm ID x 40.03mm OD x 32mm L

12шт.

12

87220204

CONNECTING LINK

6шт.

13

PIN, see Figure B01 [41]

1шт.

13

FA110025

BOLT

2шт.

13

WB100000

WASHER

2шт.

14

00141396

BEARING

2шт.

15

87220218

SPACER

2шт.

16

87220216

PIN,31.75mm OD x 213mm L

2шт.

16

FA112020

BOLT

2шт.

16

WA120000

WASHER

2шт.

16

WB120000

WASHER

2шт.

17

PIN, see Figure B01 [41]

1шт.

17

FA112020

BOLT

2шт.

17

WA120000

WASHER

2шт.

17

WB120000

WASHER

2шт.

18

87219449

FRAME ASSY

1шт.

19

00132755

LUBE NIPPLE

grease

2шт.

20

87219460

WASHER,10.5mm ID x 45mm OD x 4mm Thk

PLATE

1шт.
