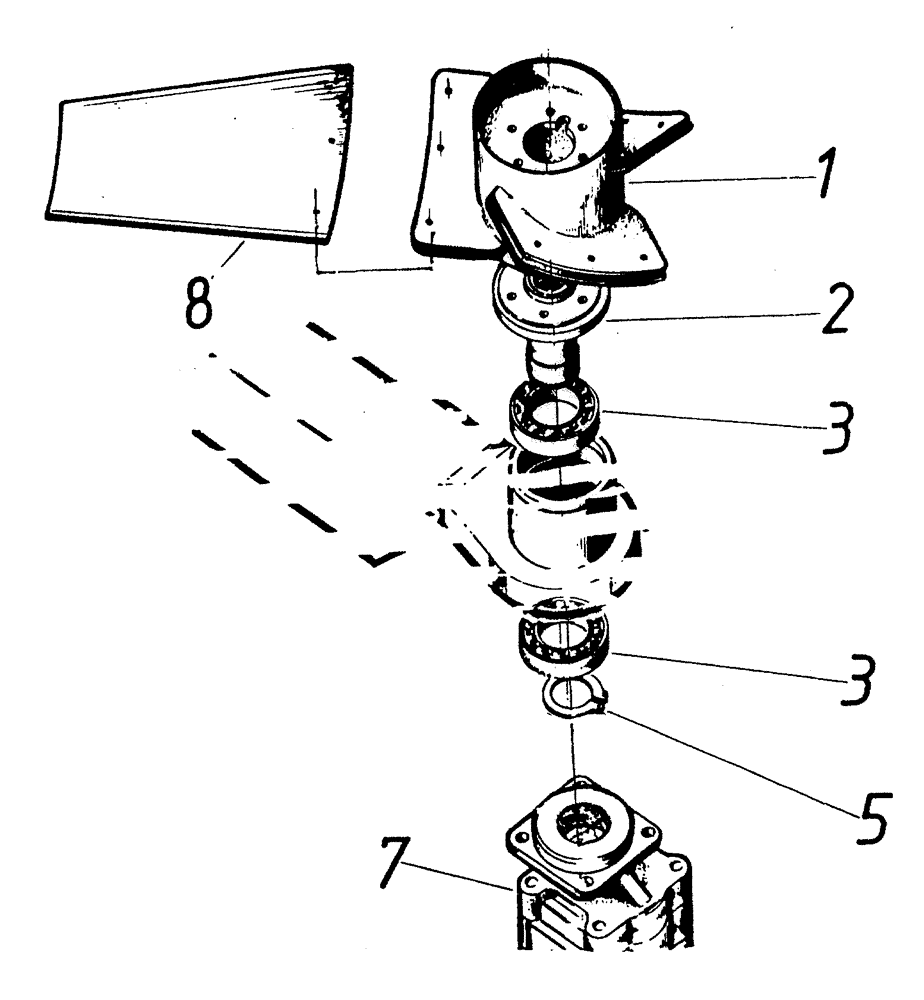

Запчасти Case IH 7700 (A02[30]) - PRIMARY EXTRACTOR FAN Mainframe & Functioning Components

1

87224942

HUB ASSY.

1шт.

Part of Assy. P/N 86792300

1шт.

1

00601499

BOLT

6шт.

Part of Assy. P/N 86792300

1шт.

1

00605827

WASHER

6шт.

Part of Assy. P/N 86792300

1шт.

2

86304126

SPLINED COUPLING

1шт.

2

00132819

PLUG

1шт.

3

00140309

BALL BEARING

2шт.

5

CE055000

CIRCLIP

1шт.

7

00601511

BOLT

4шт.

7

00605829

WASHER

4шт.

8

87214926

ASSEMBLY

SET blade, unpainted

1шт.

Part of Assy. P/N 86792300

1шт.

8

86792400

ASSEMBLY

SET blade, painted

1шт.

Part of Assy. P/N 86792300

1шт.

8

87221598

BLADE

SET, S1042

1шт.

Part of Assy. P/N 86792300

1шт.

8

00601579

BOLT

9шт.

Part of Assy. P/N 86792300

1шт.

8

00605803

NUT

9шт.

Part of Assy. P/N 86792300

1шт.

10

86792300

FAN

ASSY., Includes: Ref. 1, 8

1шт.
