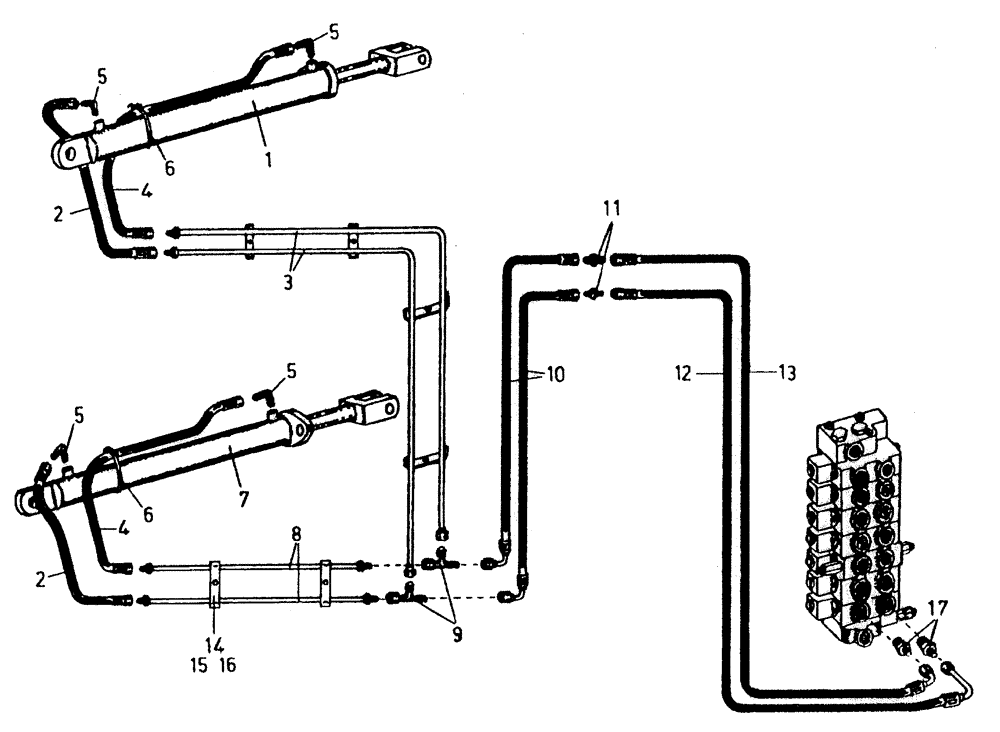

Запчасти Case IH 7700 (B07[02]) - HYDRAULIC CIRCUIT, ELEVATOR LIFT KIT, SERIAL # 7660 AND ONWARDS Hydraulic Components & Circuits

1

CYLINDER, see Figure B01 [45]

1шт.

2

82714400

HOSE

2шт.

3

87219999

TUBE

2шт.

4

81966600

HOSE,6.35mm ID x 1120mm L, SAE 100R17

2шт.

5

00400189

HYD CONNECTOR

ELBOW

4шт.

6

00134643

STRAP

TIE

2шт.

7

CYLINDER, see Figure B01 [45]

1шт.

8

87219998

TUBE

2шт.

9

00404677

TEE

2шт.

10

82725000

HOSE ASSY.,6.35mm ID x 2720mm L, SAE 100R17

2шт.

11

00400177

HYD CONNECTOR

NIPPLE

2шт.

12

87229421

HYDRAULIC HOSE

1шт.

13

87229422

HYDRAULIC HOSE

1шт.

14

81872600

WASHER,0.5" ID x 1.62" OD x 0.08" Thk

CLAMP outer

6шт.

15

81872700

STRIP

STRIP outer

6шт.

16

81872800

STRIP

STRIP inner

6шт.

17

00400074

HYD CONNECTOR

NIPPLE

2шт.
