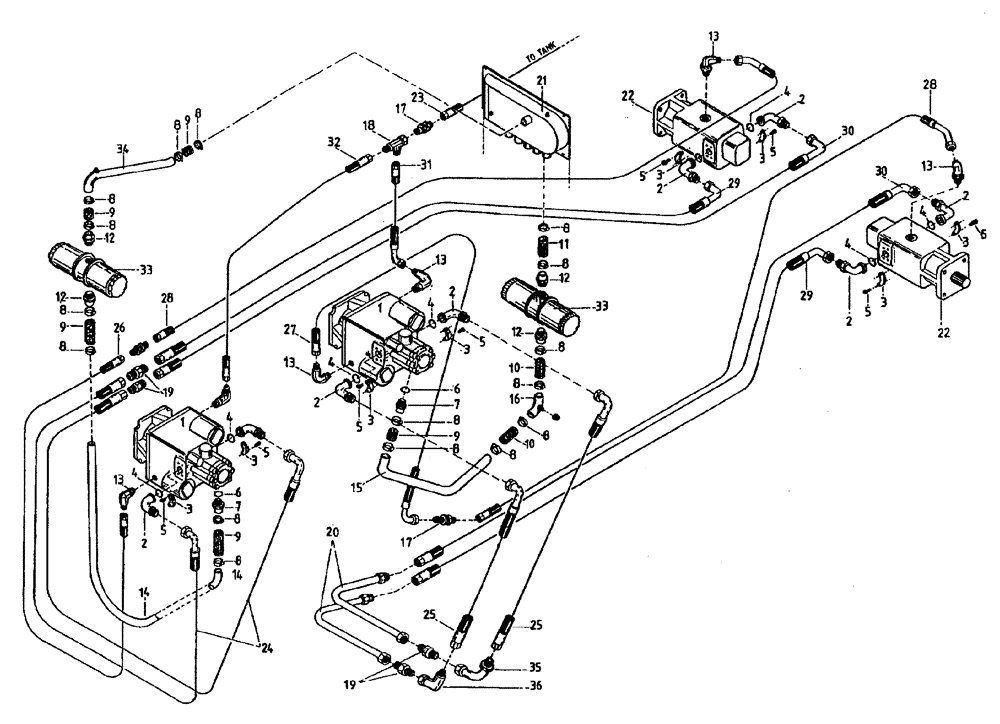

Запчасти Case IH 7700 (B05[91]) - HYDRAULIC CIRCUIT, HYDROSTATIC TRANSMISSION, UP TO AND INCLUDING SERIAL # 7659 Hydraulic Components & Circuits

1

PUMP, see Figure B03 [01]

1шт.

2

00403854

HYD CONNECTOR

ADAPTOR

8шт.

3

00400151

SPECIAL CLAMP

8шт.

4

00100024

O-RING

8шт.

5

00604462

SCREW

32шт.

6

00402131

O-RING

2шт.

7

87219835

FITTING

ADAPTOR

2шт.

8

00152128

HOSE CLAMP

12шт.

9

83123200

HOSE

5шт.

10

86312272

HOSE,38.10 mm ID x 110.00 mm

2шт.

11

87222587

HOSE,38.10 mm ID x 130.00 mm

1шт.

12

00402123

HYD CONNECTOR

ADAPTOR

4шт.

13

00400096

HYD CONNECTOR

ELBOW

6шт.

14

87220610

FRAME,38.10 mm OD

TUBE

1шт.

15

87203300

TUBE

TUBE

1шт.

16

86307774

TUBE

TUBE

1шт.

17

00400068

HYD CONNECTOR

NIPPLE

3шт.

18

00404678

TEE

1шт.

19

00400184

HYD CONNECTOR

NIPPLE

4шт.

20

87136600

TUBE,25.40 mm OD

2шт.

21

87215639

VENT MANIFOLD

TANK

1шт.

22

MOTOR, see Figure B02 [82]

1шт.

23

82714600

HOSE ASSY.

HOSE

1шт.

24

87214852

HOSE

HOSE

2шт.

25

87214851

HOSE

2шт.

26

86309588

HOSE

1шт.

27

82710000

HOSE

1шт.

28

87165000

HOSE

2шт.

29

87165200

HOSE

2шт.

30

86310296

HOSE ASSY.

2шт.

31

87219055

HOSE ASSY.

1шт.

32

81675100

HOSE ASSY.,19.05mm ID x 710mm L, SAE 100R17

1шт.

33

FILTER, see Figure B06 [01]

1шт.

34

87134700

TUBE

TUBE

1шт.

35

00403944

HYD CONNECTOR

ELBOW

1шт.

36

00400222

HYD CONNECTOR

ELBOW

1шт.
