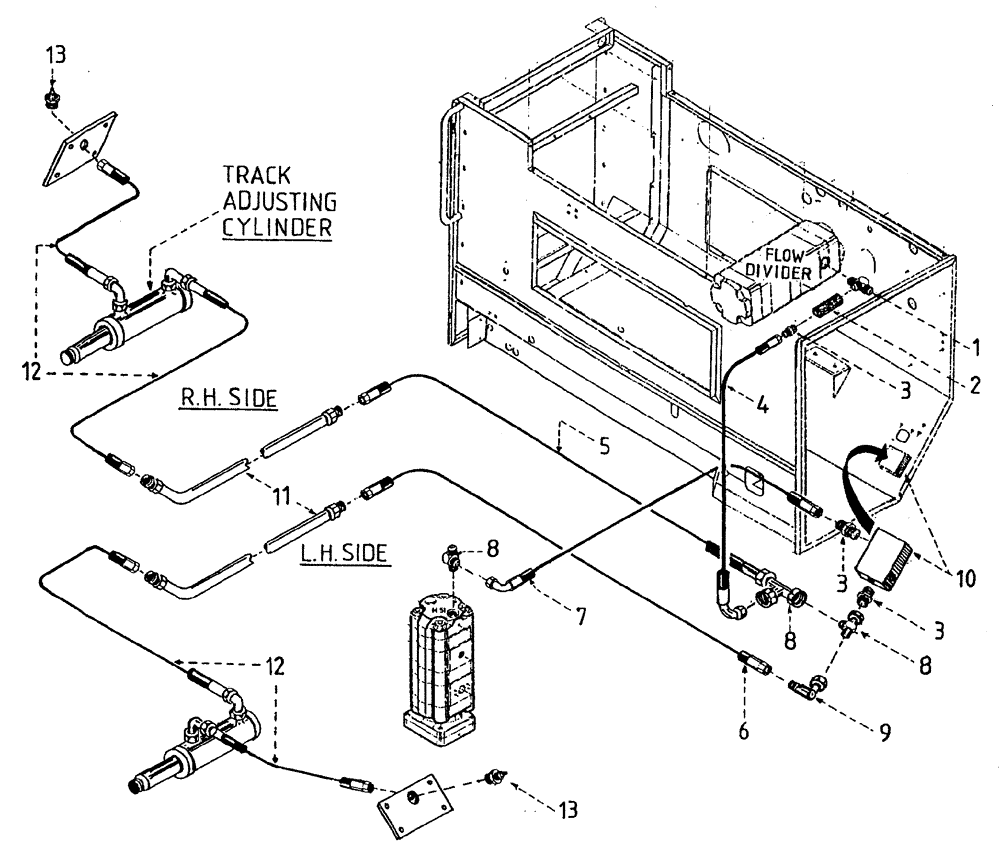

Запчасти Case IH 7700 (B05[70]) - HYDRAULIC CIRCUIT, TRACK ADJUST Hydraulic Components & Circuits

1

87220642

ASSEMBLY

TEE

1шт.

2

VALVE check, see Figure B04 [36]

1шт.

3

00400074

HYD CONNECTOR

NIPPLE

3шт.

4

86327600

HOSE ASSY.

1шт.

5

86309279

ASSEMBLY

HOSE

1шт.

6

86309807

HOSE

HOSE

1шт.

7

82382300

HOSE ASSY.

HOSE

1шт.

8

00404677

TEE

3шт.

9

00402879

HYD CONNECTOR

ELBOW

1шт.

10

VALVE relief, see Figure B04 [40]

1шт.

10

CARTRIDGE, see Figure B04 [40]

1шт.

11

87170700

TUBE,9.50 mm DIA

2шт.

11

87222253

CLAMP

4шт.

12

82743100

HOSE,6.35mm ID x 350mm L, SAE 100R17

4шт.

12

00404761

CLAMP

CLAMP

2шт.

13

00131479

VALVE

2шт.
