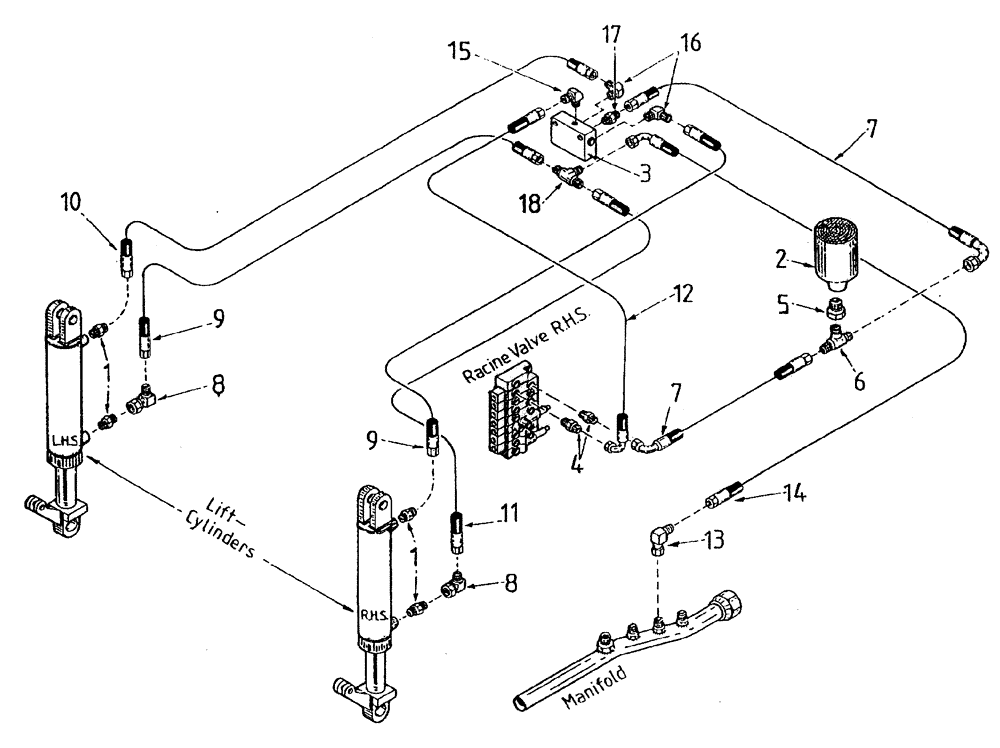

Запчасти Case IH 7700 (B05[68]) - HYDRAULIC CIRCUIT, LIFT CYLINDER, WITH COUNTERBALANCE VALVE Hydraulic Components & Circuits

1

00400165

HYD CONNECTOR

NIPPLE

4шт.

2

ACCUMULATOR, see Figure B04 [99]

1шт.

3

00405468

HYDRAULIC VALVE

relief

1шт.

3

00407817

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

3

00407818

VALVE

POPPET

4шт.

4

00400073

HYD CONNECTOR

NIPPLE

2шт.

5

00407261

BUSHING

BUSH

1шт.

6

00407260

TEE

TEE

1шт.

7

86308436

HOSE

2шт.

8

00400192

HYD CONNECTOR

ELBOW

2шт.

9

82719300

HOSE

2шт.

10

82747300

HOSE,9.53mm ID x 1570mm L, SAE 100R17

HOSE

1шт.

11

86313805

HOSE

1шт.

12

87217070

HOSE

1шт.

13

00402879

HYD CONNECTOR

ELBOW

1шт.

14

87169700

HOSE

1шт.

15

00400238

HYD CONNECTOR

ELBOW

1шт.

16

00400240

HYD CONNECTOR

ELBOW

2шт.

17

00400093

HYD CONNECTOR

NIPPLE

1шт.

18

87223295

TEE

1шт.
