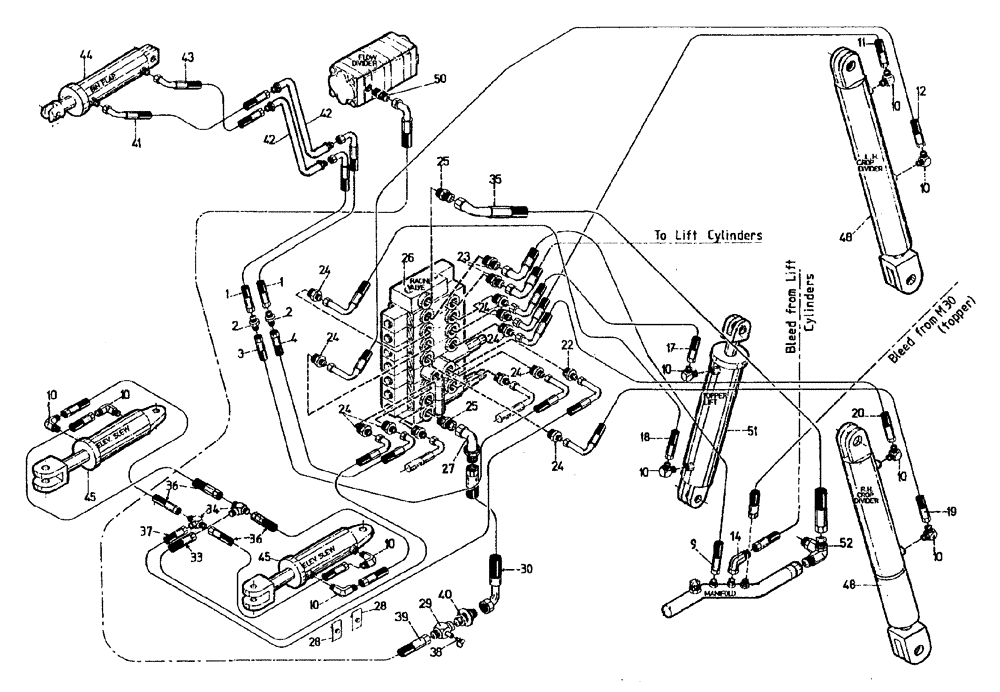

Запчасти Case IH 7700 (B05[56]) - HYDRAULIC CIRCUIT, RACINE UP TO AND INCLUDING SERIAL # 7659 Hydraulic Components & Circuits

1

83129300

HOSE

HOSE

2шт.

2

00400177

HYD CONNECTOR

NIPPLE

2шт.

3

87033800

HOSE

1шт.

4

87034000

HOSE

1шт.

9

83135400

HOSE

HOSE

1шт.

10

00400189

HYD CONNECTOR

ELBOW

10шт.

11

82725000

HOSE ASSY.,6.35mm ID x 2720mm L, SAE 100R17

1шт.

12

87038600

HOSE,6.35mm ID x 2420mm L, SAE 100R17

HOSE

1шт.

14

00402879

HYD CONNECTOR

ELBOW

1шт.

17

87038500

HOSE

1шт.

18

87034100

HOSE

1шт.

19

87034800

HOSE

1шт.

20

82742900

HOSE

1шт.

22

87213953

HYD CONNECTOR

RESTRICTOR nipple

1шт.

23

004.00073

NIPPLE

2шт.

24

00400074

HYD CONNECTOR

NIPPLE

9шт.

25

00400228

HYD CONNECTOR

NIPPLE

2шт.

26

VALVE, see Figure B04 [30]

1шт.

27

00407516

HYD CONNECTOR

ELBOW

1шт.

28

86305010

CLAMP

2шт.

29

87217841

TEE

1шт.

30

83135400

HOSE

HOSE

1шт.

33

82760300

HOSE

1шт.

34

87221406

TEE

2шт.

35

87214292

HOSE ASSY.

1шт.

36

81965500

HOSE ASSY.

4шт.

37

87169300

HOSE

HOSE

1шт.

38

00405498

SCREW ON COUPLING

POINT test

1шт.

39

82752100

HOSE

HOSE

1шт.

40

00407067

HYD CONNECTOR

NIPPLE

1шт.

41

86310648

HOSE

1шт.

42

86937700

TUBE standard elevator

2шт.

42

87121500

TUBE

extended elevator

2шт.

43

82731600

HOSE,6.35mm ID x 1370mm L, SAE 100R17

1шт.

44

CYLINDER, see Figure B01 [50]

1шт.

45

CYLINDER, see Figure B01 [41]

1шт.

48

CYLINDER, see Figure B01 [02]

1шт.

50

00400231

HYD CONNECTOR

NIPPLE

1шт.

51

CYLINDER, see Figure B01 [01]

1шт.

52

86310816

HYD CONNECTOR

ELBOW

1шт.
