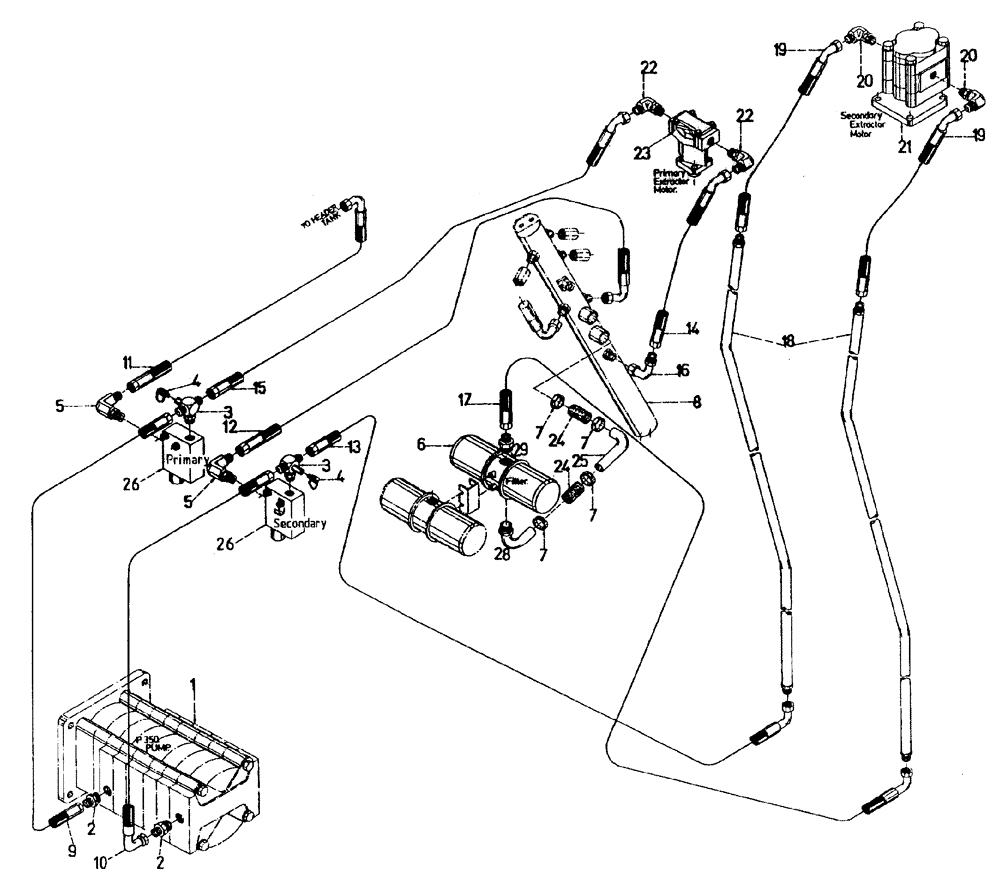

Запчасти Case IH 7700 (B05[53]) - HYDRAULIC CIRCUIT, EXTRACTORS, SERIAL # 7660 AND ONWARDS Hydraulic Components & Circuits

1

PUMP, see Figure B03 [10]

1шт.

2

00400234

HYD CONNECTOR

NIPPLE

2шт.

3

87220629

TEE

2шт.

4

00405498

SCREW ON COUPLING

POINT test

2шт.

5

00400245

HYD CONNECTOR

ELBOW

2шт.

6

FILTER, see Figure B06 [01]

1шт.

7

00152128

HOSE CLAMP

4шт.

8

87219476

MANIFOLD

MANIFOLD

1шт.

9

86830400

HOSE

1шт.

10

87214272

HOSE

HOSE

1шт.

11

87229406

HOSE

1шт.

12

87219140

HOSE

1шт.

13

87221476

HOSE

1шт.

14

87221388

HOSE

1шт.

15

87221388

HOSE

1шт.

16

00403944

HYD CONNECTOR

ADAPTOR

1шт.

17

87221475

HOSE

1шт.

18

86909502

HYD TUBE,1" OD

TUBE standard elevator

2шт.

18

87121300

HYD TUBE

TUBE extended elevtator

2шт.

19

87121700

HOSE

2шт.

20

00400246

HYD CONNECTOR

ELBOW

2шт.

21

MOTOR, see Figure B02 [50]

1шт.

22

00400097

HYD CONNECTOR

ELBOW

2шт.

23

MOTOR, see Figure B02 [60]

1шт.

24

83123200

HOSE

2шт.

25

87221414

TUBE,1.50" OD

1шт.

26

VALVE, see Figure B04 [38]

1шт.

28

86997700

TUBE,1.50 mm DIA

1шт.

29

00407121

HYD CONNECTOR

NIPPLE

1шт.
