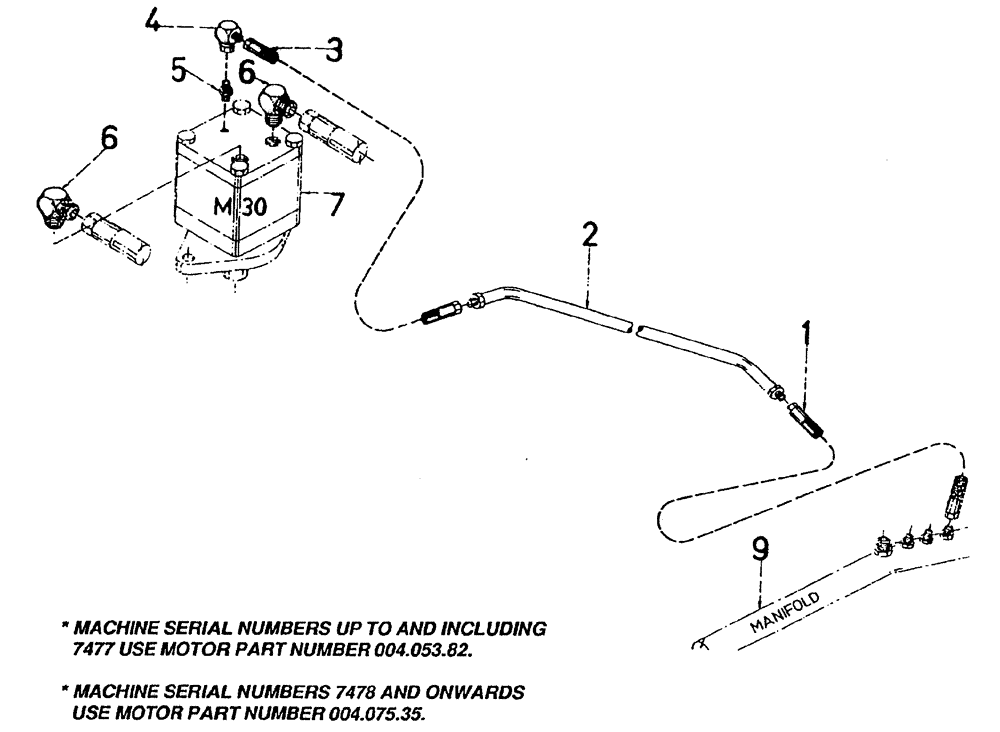

Запчасти Case IH 7700 (B05[50]) - HYDRAULIC CIRCUIT, TOPPER OPTION, M30 Hydraulic Components & Circuits

1

82712800

HOSE

1шт.

2

87219424

TUBE,9.52 mm OD x 1355 mm, 175 mm L

TUBE

1шт.

3

82709900

HOSE,6.35mm ID x 1526mm L, SAE 100R17

HOSE

1шт.

4

00402879

HYD CONNECTOR

ELBOW

1шт.

5

00402235

HYD CONNECTOR

NIPPLE

1шт.

6

00400242

HYD CONNECTOR

ELBOW

2шт.

7

MOTOR, see Figure B02 [40]

1шт.

7

MOTOR, see Figure B02 [42]

1шт.
