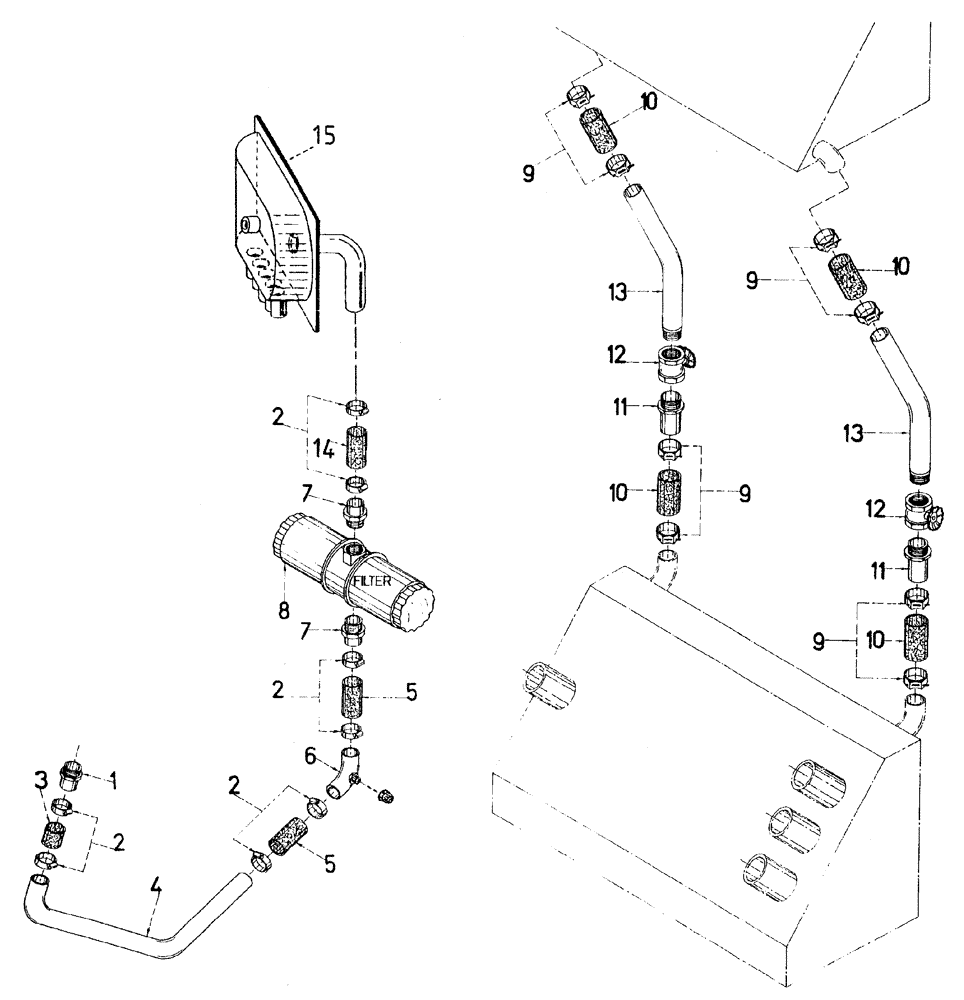

Запчасти Case IH 7700 (B05[07]) - HYDRAULIC SUCTION LINES, ROTARY CHOP Hydraulic Components & Circuits

1

87219835

FITTING

ADAPTOR

1шт.

2

00152128

HOSE CLAMP

8шт.

3

83123200

HOSE

1шт.

4

87203300

TUBE

TUBE

1шт.

5

86312272

HOSE,38.10 mm ID x 110.00 mm

2шт.

6

86307774

TUBE

TUBE

1шт.

6

00400143

HYD CONNECTOR

NUT cap

1шт.

7

00402123

HYD CONNECTOR

NIPPLE

2шт.

8

FILTER, see Figure B06 [01]

1шт.

9

00180541

HOSE CLAMP

8шт.

10

83130600

HOSE,50.8mm ID x 152mm L, SAE J20R1

4шт.

11

87229464

TUBE,50.80 mm OD x 226 mm L

TUBE

2шт.

12

00402114

SHUT-OFF VALVE

2шт.

13

87229462

TUBE,2.00" DIA

TUBE

2шт.

14

87222587

HOSE,38.10 mm ID x 130.00 mm

1шт.

15

87215639

VENT MANIFOLD

TANK

1шт.
