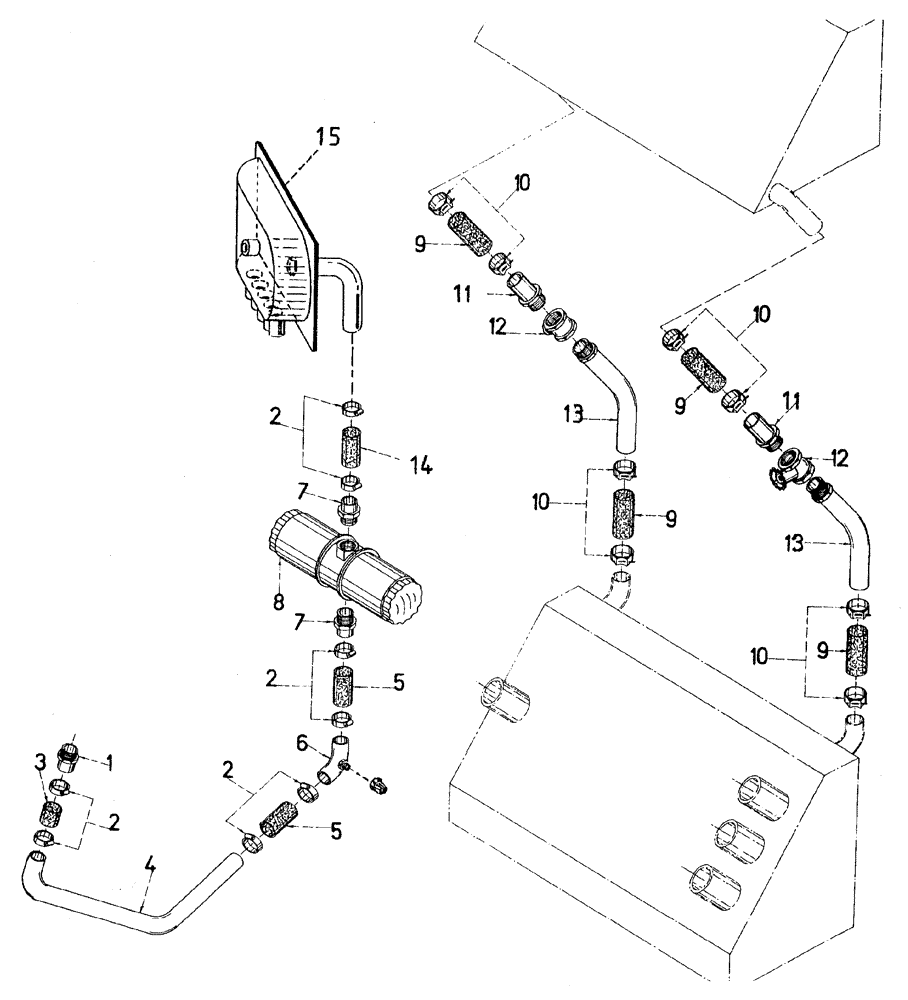

Запчасти Case IH 7700 (B05[03]) - HYDRAULIC SUCTION LINES, SWINGING KNIFE Hydraulic Components & Circuits

1

87219835

FITTING

ADAPTOR

1шт.

2

00152128

HOSE CLAMP

8шт.

3

83123200

HOSE

1шт.

4

87203300

TUBE

TUBE

1шт.

5

86312272

HOSE,38.10 mm ID x 110.00 mm

2шт.

6

87217115

TUBE

1шт.

6

00400143

HYD CONNECTOR

NUT cap

1шт.

7

00402123

HYD CONNECTOR

NIPPLE

2шт.

8

FILTER, see Figure B06 [01]

1шт.

9

82204300

HOSE,50.8mm ID x 102mm L

4шт.

10

00180541

HOSE CLAMP

8шт.

11

87229464

TUBE,50.80 mm OD x 226 mm L

ADAPTOR

2шт.

12

00402114

SHUT-OFF VALVE

2шт.

13

87213282

TUBE

2шт.

14

87222587

HOSE,38.10 mm ID x 130.00 mm

1шт.

15

87215639

VENT MANIFOLD

TANK

1шт.
