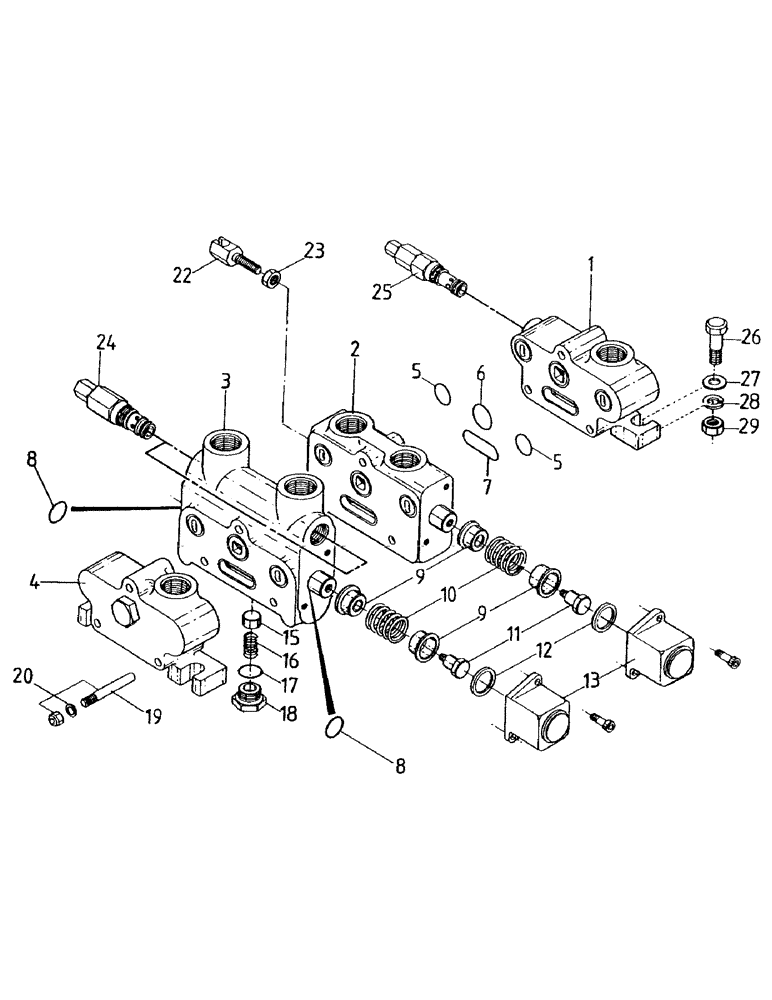

Запчасти Case IH 7700 (B04-20) - HYDRAULIC RACINE VALVE, FLORIDA OPTION Hydraulic Components & Circuits

1

00408092

VENT MANIFOLD

MANIFOLD (Inlet)

1шт.

2

00405040

HYD VALVE SECTION

HOUSING

6шт.

3

00405055

HYDRAULIC VALVE

HOUSING

1шт.

4

00408095

VENT MANIFOLD

MANIFOLD (Outlet)

1шт.

5

00405023

O-RING

1шт.

6

00405020

O-RING

1шт.

7

00405024

O-RING

1шт.

8

00100012

O-RING

1шт.

9

00405048

SPRING

RETAINER

1шт.

10

00405049

ASSEMBLY

SPRING

1шт.

11

00405050

ASSEMBLY

END SPOOL

1шт.

12

00405051

WASHER

SPACER

1шт.

13

00405054

COVER

1шт.

15

00405043

PISTON

1шт.

16

00405044

SPRING

1шт.

17

00405045

O-RING

1шт.

18

00405046

PLUG

1шт.

19

00405065

TIE-ROD

TIE ROD

3шт.

20

00405064

FIP KIT

TIE ROD KIT

3шт.

22

87193800

ADAPTER

ADAPTOR

7шт.

23

00606013

LOCK NUT

NUT

7шт.

24

00405062

HYDRAULIC VALVE

RELIEF VALVE

1шт.

25

00408177

VALVE PRESSURE RELIE

RELIEF VALVE

1шт.

26

FA110035

BOLT

3шт.

27

WA100000

WASHER

3шт.

28

WB100000

WASHER

3шт.

29

NA110000

NUT

3шт.

30

00408100

SEAL KIT

(Relief Valve)

2шт.

31

00405068

SEAL

KIT (Working Section)

3шт.

32

00404682

VALVE

ASSEMBLY

1шт.
