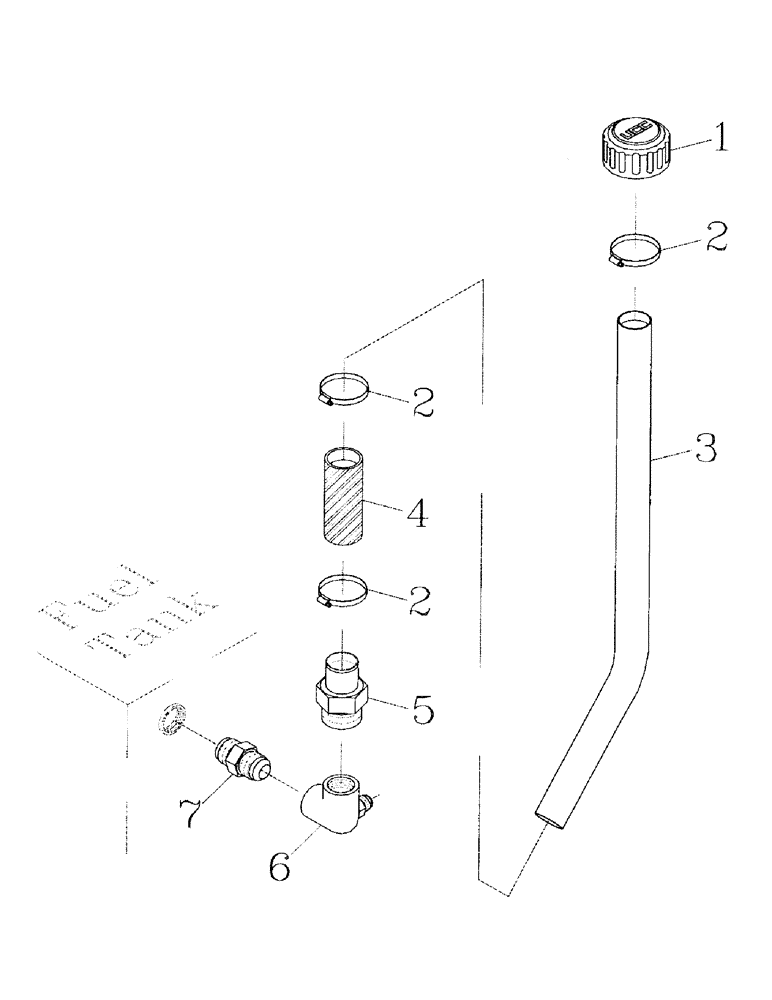

Запчасти Case IH 7700 (C01-10) - FUEL TANK BREATHER, M11-250/M11-330, FLORIDA OPTION Engine & Engine Attachments

1

00401607

FILLER CAP

CAP

1шт.

2

00152128

HOSE CLAMP

CLAMP

3шт.

3

87243286

TUBE,38.10 mm OD

1шт.

4

86312272

HOSE,38.10 mm ID x 110.00 mm

38.10 mm ID x 110.00 mm

1шт.

5

00408560

FITTING

HOSETAIL

1шт.

6

87247927

ELBOW

1шт.

7

00400122

ASSEMBLY

NIPPLE

1шт.
