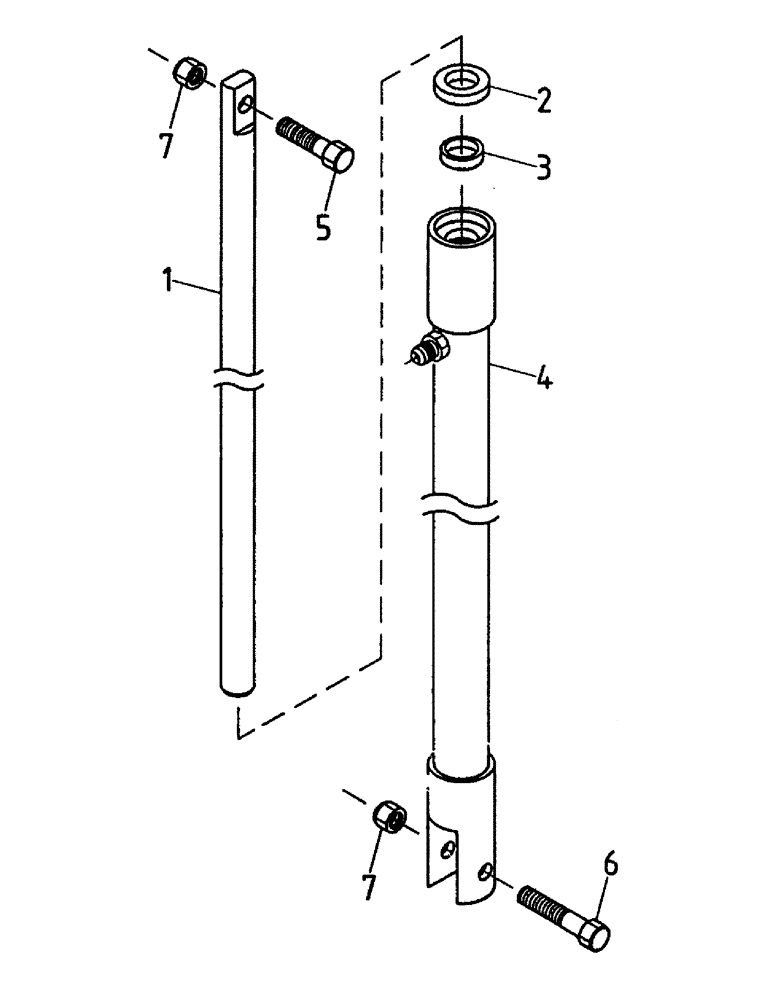

Запчасти Case IH 7700 (B01-62) - HYDRAULIC CYLINDER, HEIGHT INDICATOR 7700, FLORIDA OPTION Hydraulic Components & Circuits

1

87237350

SHAFT,22.23mm OD x 692mm L

ROD

1шт.

2

00100552

OIL SEAL

SEAL

1шт.

3

00100759

OIL SEAL

SEAL

1шт.

4

87237351

CYLINDER,25mm Bore Dia

BARREL

1шт.

4

87249481

BARREL

(Louisiana)

1шт.

5

FM112045

BOLT

1шт.

6

FM112060

BOLT

1шт.

7

NC112000

NUT

NUT

2шт.

8

87237349

HYDRAULIC CYLINDER

ASSEMBLY

2шт.

8

87249480

HYDRAULIC CYLINDER

ASSEMBLY (Louisiana)

1шт.
