(B01-60) - HYDRAULIC CYLINDER, BASECUTTER LIFT 7700, FLORIDA OPTION

Запчасти Case IH 7700 (B01-60) - HYDRAULIC CYLINDER, BASECUTTER LIFT 7700, FLORIDA OPTION Hydraulic Components & Circuits

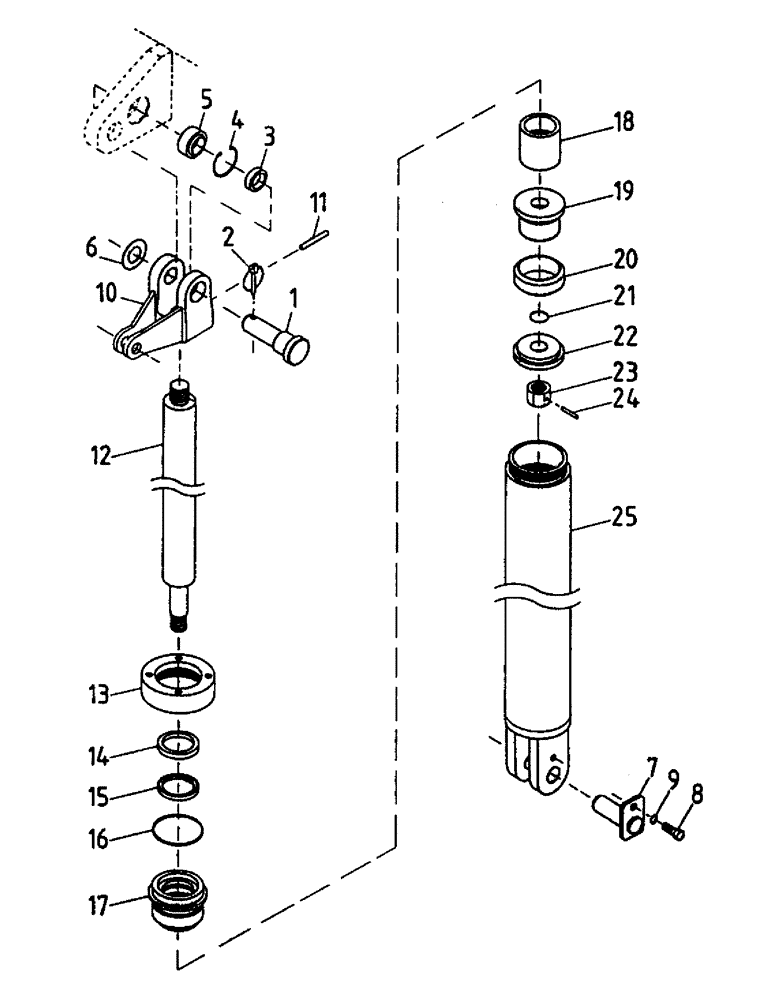

Схема запчастей Case IH 7700 - (B01-60) - HYDRAULIC CYLINDER, BASECUTTER LIFT 7700, FLORIDA OPTION Hydraulic Components & Circuits
19
11
6
16
4
8
3
5
23
21
17
25
9
22
2
13
12
15
10
14
7
10
24
20
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87237359

PIN,29mm OD x 96.5mm L

1шт.

2

00606627

PIN

LYNCH PIN

1шт.

3

87237360

SPACER

1шт.

4

CI042000

CIRCLIP

1шт.

5

00141584

BEARING

1шт.

6

WA250000

WASHER

1шт.

7

87237362

PIN,25mm OD x 75mm L

1шт.

8

FM110025

BOLT

1шт.

9

WB100000

WASHER

1шт.

10

87247758

CLEVIS

1шт.

11

00606414

PIN

ROLL PIN

1шт.

12

87237339

SHAFT

ROD

1шт.

13

87045700

SPECIAL NUT

NUT

1шт.

14

00100722

WIPER SEAL

WIPER

1шт.

15

00100711

WIPER SEAL

SEAL

1шт.

16

00100110

O-RING

1шт.

17

87214804

CYLINDER HEAD

HEAD

1шт.

18

87237342

SPACER

1шт.

19

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

PISTON

1шт.

20

00100715

OIL SEAL

SEAL

1шт.

21

00100019

O-RING

1шт.

22

86787100

PISTON

RETAINER

1шт.

23

00606612

NUT

1шт.

24

SB050030

PIN

ROLL PIN

1шт.

25

87237340

CYLINDER

BARREL (LH)

1шт.

25

87249473

CYLINDER

BARREL (LH) (Louisiana)

1шт.

25

87237341

ASSEMBLY

BARREL (RH)

1шт.

25

87249474

CYLINDER

BARREL (RH) (Louisiana)

1шт.

26

87213917

SEAL KIT

1шт.

27

87247750

CYLINDER,Double Acting, 44.45mm Rod, 575mm Stroke

ASSEMBLY (LH) (Includes Items 10-25)

1шт.

27

87249476

CYLINDER

ASSEMBLY (LH) (Includes Items 10-25) (Louisiana)

1шт.

27

87247751

CYLINDER,Double Acting, 44.45mm Rod, 575mm Stroke

ASSEMBLY (RH) (Includes Items 10-25)

1шт.

27

87249477

CYLINDER

ASSEMBLY (RH) (Includes Items 10-25) (Louisiana)

1шт.
