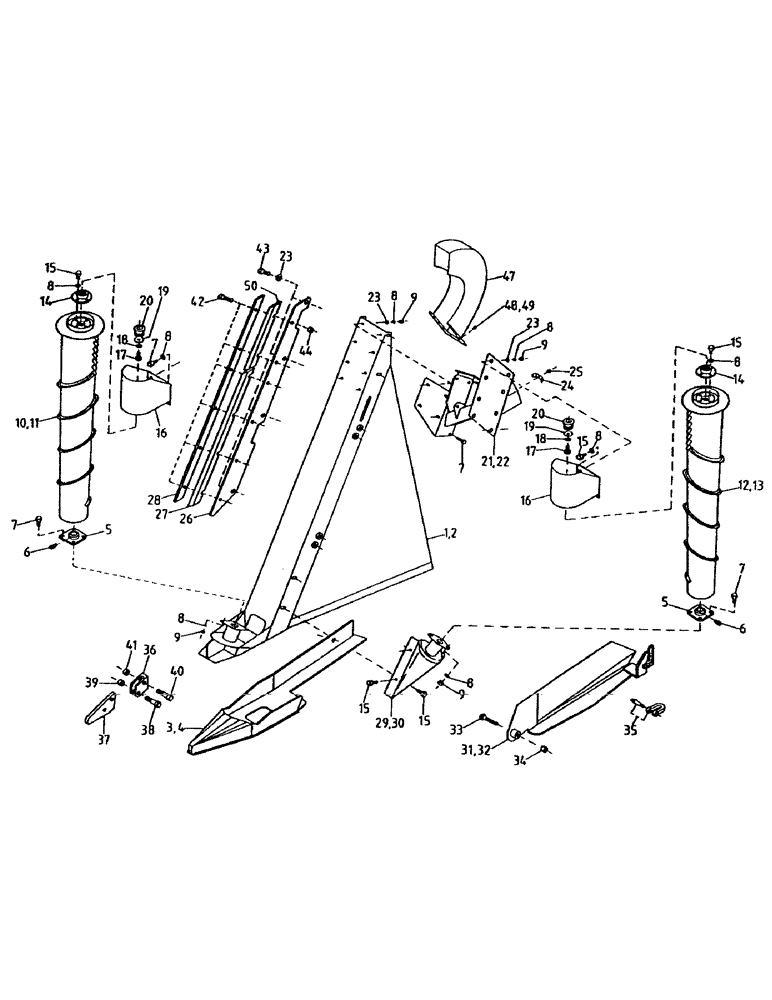

Запчасти Case IH 7700 (A02-10) - CROPDIVIDERS, FLORIDA OPTION Mainframe & Functioning Components

1

87240867

CROP DIVIDER

CROPDIVIDER (LH)

1шт.

2

87240868

CROP DIVIDER

CROPDIVIDER (RH)

1шт.

3

87244863

SHOE (ASSY)

SHOE (LH)

1шт.

4

87244864

SHOE (ASSY)

SHOE (RH)

1шт.

5

00140519

BEARING

and HOUSING

4шт.

5

00140826

BEARING

(Triple Seal)

4шт.

6

00138722

LUBE NIPPLE

GREASE NIPPLE

4шт.

7

FM112040

BOLT

28шт.

8

WB120000

WASHER

68шт.

9

NA112000

NUT

48шт.

10

87236905

AUGER

(LH)

1шт.

11

87236963

AUGER

(RH)

1шт.

12

86967700

AUGER

(LH)

1шт.

13

86967600

AUGER

(RH)

1шт.

14

86700800

ADAPTER

ADAPTOR

4шт.

15

00601506

BOLT

16шт.

16

86955200

MOUNTING PARTS

BRACKET

4шт.

17

00601499

BOLT

4шт.

18

00605827

WASHER

4шт.

19

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

WASHER

4шт.

20

86701200

GEAR

PINION

4шт.

21

87242511

MOUNTING PARTS

MOUNT (LH)

1шт.

22

87242512

MOUNTING PARTS

MOUNT (RH)

1шт.

23

WA120000

WASHER

34шт.

24

82029900

BRACKET

CLAMP

2шт.

25

NC110000

NUT

NUT

2шт.

26

87229395

PLATE

MOUNT

2шт.

27

87214899

BLADE

2шт.

28

87229398

CLAMP

2шт.

29

87214015

BRACKET

MOUNT (LH)

1шт.

30

87214016

MOUNTING PARTS

MOUNT (RH)

1шт.

31

87242472

SIDEWALL

FLOATING SIDEWALL (LH)

1шт.

32

87242473

SIDEWALL

FLOATING SIDEWALL (RH)

1шт.

33

FG120130

BOLT

2шт.

34

NC120000

NUT

NUT

2шт.

35

00700180

SHACKLE

2шт.

36

87226683

MOUNTING PARTS

MOUNT

2шт.

37

87226686

BUCKET TOOTH POINT

POINT

2шт.

38

00601541

BOLT

2шт.

39

00606001

LOCK NUT

NUT

2шт.

40

00601531

BOLT

2шт.

41

00605997

LOCK NUT

NUT

2шт.

42

FA112045

BOLT

6шт.

43

FA112035

BOLT

4шт.

44

NC112000

NUT

NUT

10шт.

45

87244865

SHOE ASSEMBLY (LH) (Includes Items 3/36-41)

1шт.

46

87244866

SHOE ASSEMBLY (RH) (Includes Items 4/36-41)

1шт.

47

87242527

GUARD

1шт.

48

FM108020

BOLT

4шт.

49

NA108000

NUT

4шт.

50

87229401

BLADE

2шт.
