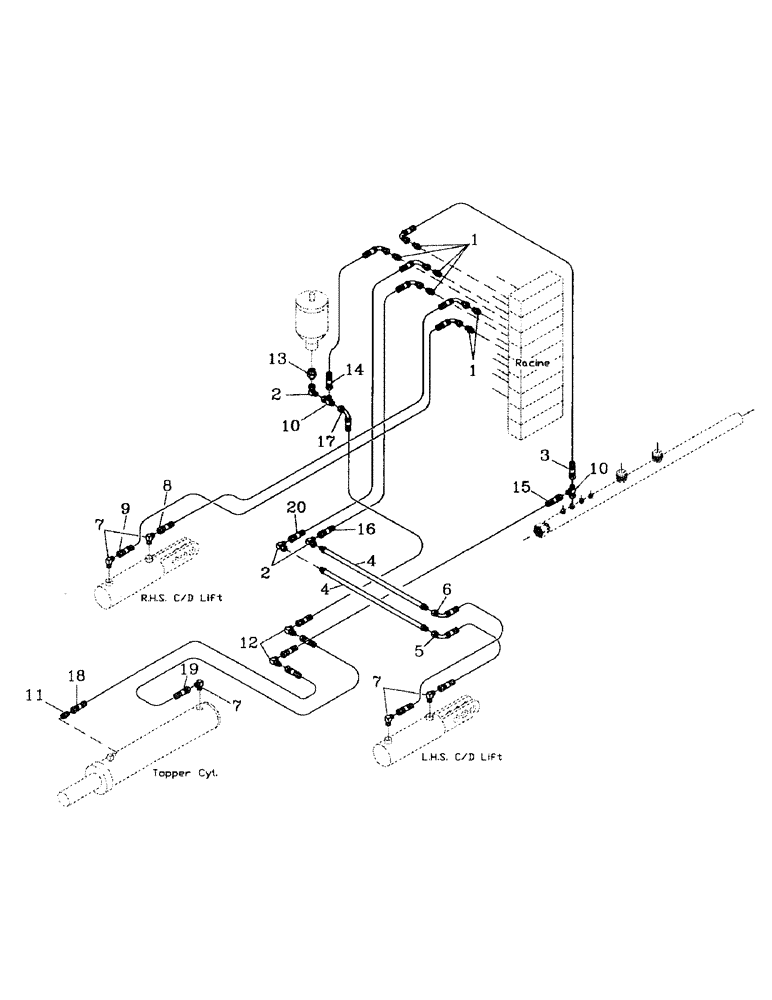

Запчасти Case IH 7700 (B06-20) - HYDRAULIC CIRCUIT, TOPPER AND CROPDIVIDER LIFT, FLORIDA OPTION Hydraulic Components & Circuits

1

00400074

HYD CONNECTOR

NIPPLE

6шт.

2

00402879

HYD CONNECTOR

ELBOW

3шт.

3

82704900

HOSE,6.35mm ID x 530mm L, SAE 100R17

1шт.

4

87248209

TUBE,9.50 mm OD x 1000 mm L

2шт.

5

87238348

HOSE,6.35mm ID x 1270mm L, SAE 100R17

1шт.

6

86306167

HOSE,6.35mm ID x 1590mm L, SAE 100R17

1шт.

7

00400189

HYD CONNECTOR

ELBOW

5шт.

8

87250096

HOSE

1шт.

9

87217477

HOSE ASSY.

HOSE

1шт.

10

00404677

TEE

2шт.

11

00400163

LUBE NIPPLE

NIPPLE

1шт.

12

00404781

HYD CONNECTOR

ELBOW

2шт.

13

00404765

HYD CONNECTOR

NIPPLE

1шт.

14

86327600

HOSE ASSY.

HOSE

1шт.

15

87247520

HOSE

1шт.

16

81678000

HOSE ASSY.

HOSE

1шт.

17

82756500

HYDRAULIC HOSE,6.35mm ID x 1490mm L, SAE 100R17

HOSE

1шт.

18

87239097

HOSE

1шт.

19

81965500

HOSE ASSY.

HOSE

1шт.

20

87250095

HOSE,6.35mm ID x 770mm L, SAE 100R17

1шт.
