(C03-45) - ENGINE SHUTDOWN (6CT), UP TO AND INCLUDING SERIAL #7845

Запчасти Case IH 7700 (C03-45) - ENGINE SHUTDOWN (6CT), UP TO AND INCLUDING SERIAL #7845 Engine & Engine Attachments

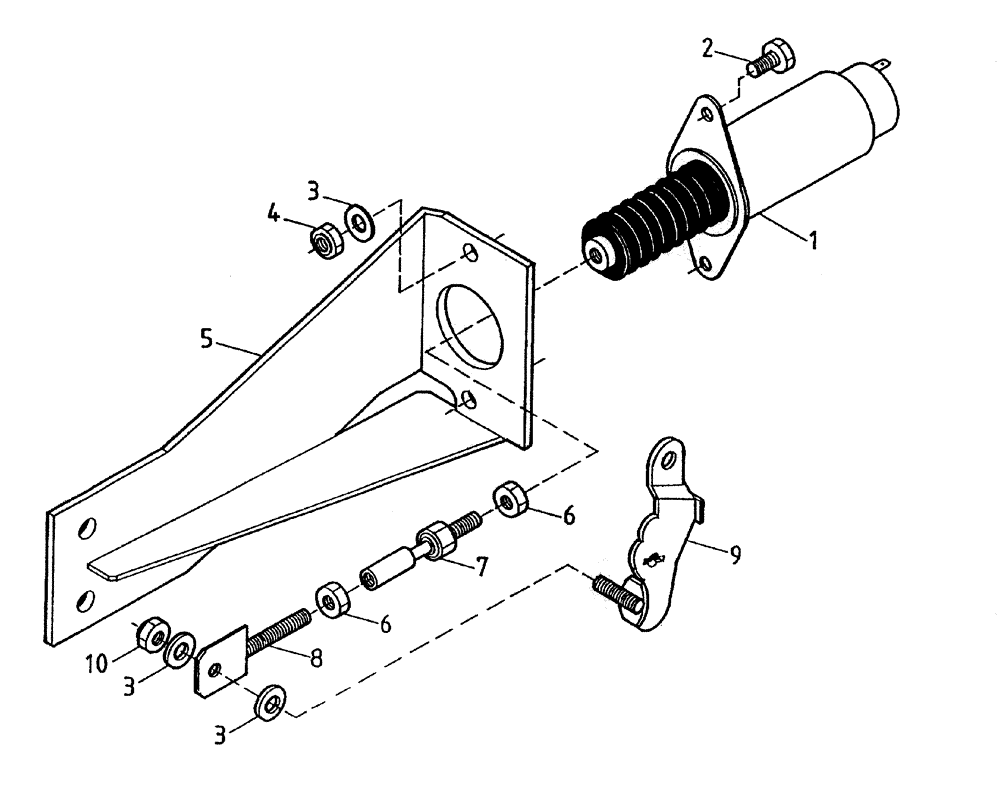

Схема запчастей Case IH 7700 - (C03-45) - ENGINE SHUTDOWN (6CT), UP TO AND INCLUDING SERIAL #7845 Engine & Engine Attachments
5
4
6
9
8
10
3
3
7
6
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00180767

SOLENOID

1шт.

2

00601493

BOLT

2шт.

3

00605806

WASHER

4шт.

4

00605997

LOCK NUT

2шт.

5

87235400

MOUNTING PARTS

MOUNT

1шт.

6

00605799

NUT

2шт.

7

00137247

ADAPTER

SWIVEL (in line)

1шт.

8

87219967

CONNECTING LINK

LINKAGE

1шт.

9

87231901

LINKAGE (fuel pump)

1шт.

10

00606011

LOCK NUT

1шт.

Выбрано товаров: 10
