(C01-90) - WATER SEPARATOR AND FUEL LINES (L10), UP TO AND INCLUDING #7907

Запчасти Case IH 7700 (C01-90) - WATER SEPARATOR AND FUEL LINES (L10), UP TO AND INCLUDING #7907 Engine & Engine Attachments

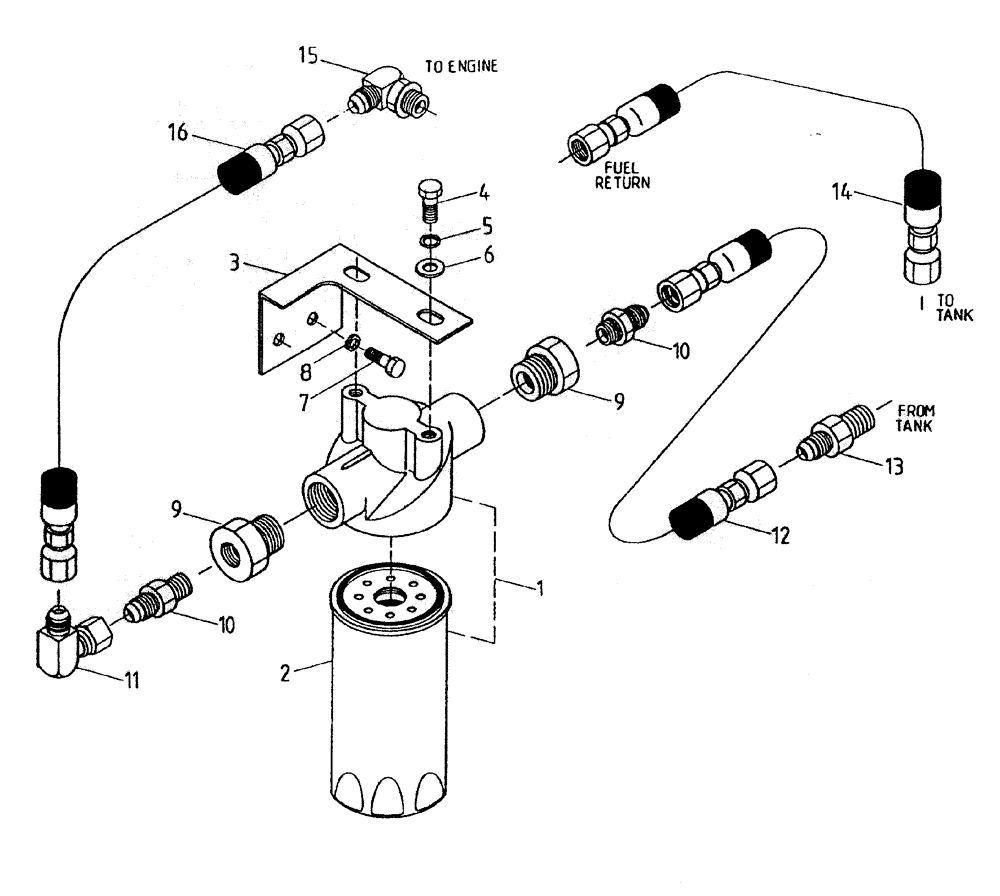

Схема запчастей Case IH 7700 - (C01-90) - WATER SEPARATOR AND FUEL LINES (L10), UP TO AND INCLUDING #7907 Engine & Engine Attachments
3
4
10
10
13
11
9
14
6
5
12
1
9
15
16
7
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00180630

FUEL FILTER

WATER TRAP ASSEMBLY

1шт.

2

00180746

ELEMENT

1шт.

3

87231573

MOUNT

1шт.

4

00601495

BOLT

2шт.

5

00605827

WASHER

2шт.

6

00608041

WASHER

2шт.

7

00601494

BOLT

2шт.

8

00605826

WASHER

2шт.

9

00408479

HYD CONNECTOR

BUSH (Red)

2шт.

10

00400167

HYD CONNECTOR

NIPPLE

2шт.

11

00405078

HYD CONNECTOR

ELBOW

1шт.

12

87231877

HOSE

1шт.

13

00400165

HYD CONNECTOR

NIPPLE

1шт.

14

87235536

HOSE,12.7mm ID x 610mm L, SAE 100R6

HOSE

1шт.

15

00400241

HYD CONNECTOR

ELBOW

1шт.

16

87235535

HOSE

1шт.
