(A03-30) - VERTICAL ARM PRIMARY EXTRACTOR SHROUD, UP TO AND INCLUDING

Запчасти Case IH 7700 (A03-30) - VERTICAL ARM PRIMARY EXTRACTOR SHROUD, UP TO AND INCLUDING Mainframe & Functioning Components

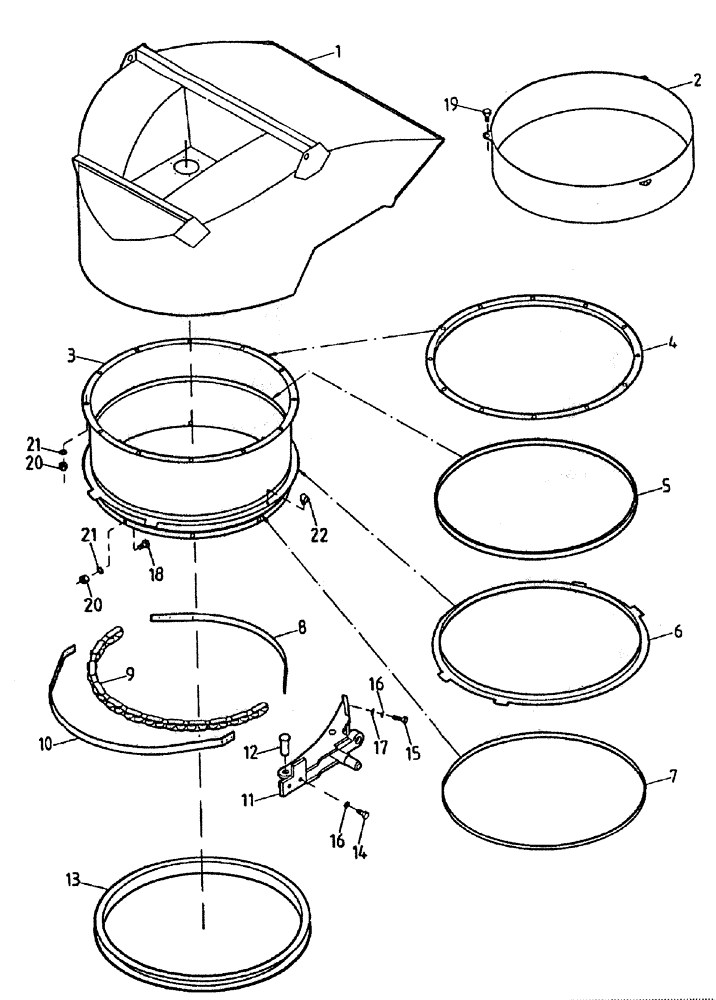

Схема запчастей Case IH 7700 - (A03-30) - VERTICAL ARM PRIMARY EXTRACTOR SHROUD, UP TO AND INCLUDING Mainframe & Functioning Components
10
20
4
2
15
5
21
17
6
11
19
18
14
16
16
1
12
22
21
9
8
7
20
13
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87230243

ASSEMBLY

HOOD

1шт.

2

87230248

LINER

1шт.

3

87230244

BARREL

(welded assembly)

1шт.

4

87230287

MOUNTING PARTS

RING

1шт.

5

87232886

MOUNTING PARTS

RING

1шт.

6

86720700

MOUNTING PARTS

RING

1шт.

7

86720900

WEAR STRIP

RING

1шт.

8

86796500

STRAP

1шт.

9

86799400

CHAIN

1шт.

10

87219782

STAY

STRAP

1шт.

11

86795500

CONNECTING LINK

(LH)

1шт.

11

86795600

SLEWING RING

LINK (RH)

1шт.

12

82085300

PIN,19.18mm OD x 60.32mm L

2шт.

13

86732200

RING

1шт.

14

FA112020

BOLT

4шт.

15

FA112025

BOLT

4шт.

16

WB120000

WASHER

8шт.

17

WA120000

WASHER

4шт.

18

FA110020

BOLT

8шт.

19

FA110035

BOLT

12шт.

20

NA110000

NUT

20шт.

21

WB100000

WASHER

20шт.

22

00132756

LUBE NIPPLE

grease

2шт.
