(B05-10) - HYDRAULIC SUCTION LINES (108/6CT), UP TO AND INCLUDING

Запчасти Case IH 7700 (B05-10) - HYDRAULIC SUCTION LINES (108/6CT), UP TO AND INCLUDING Hydraulic Components & Circuits

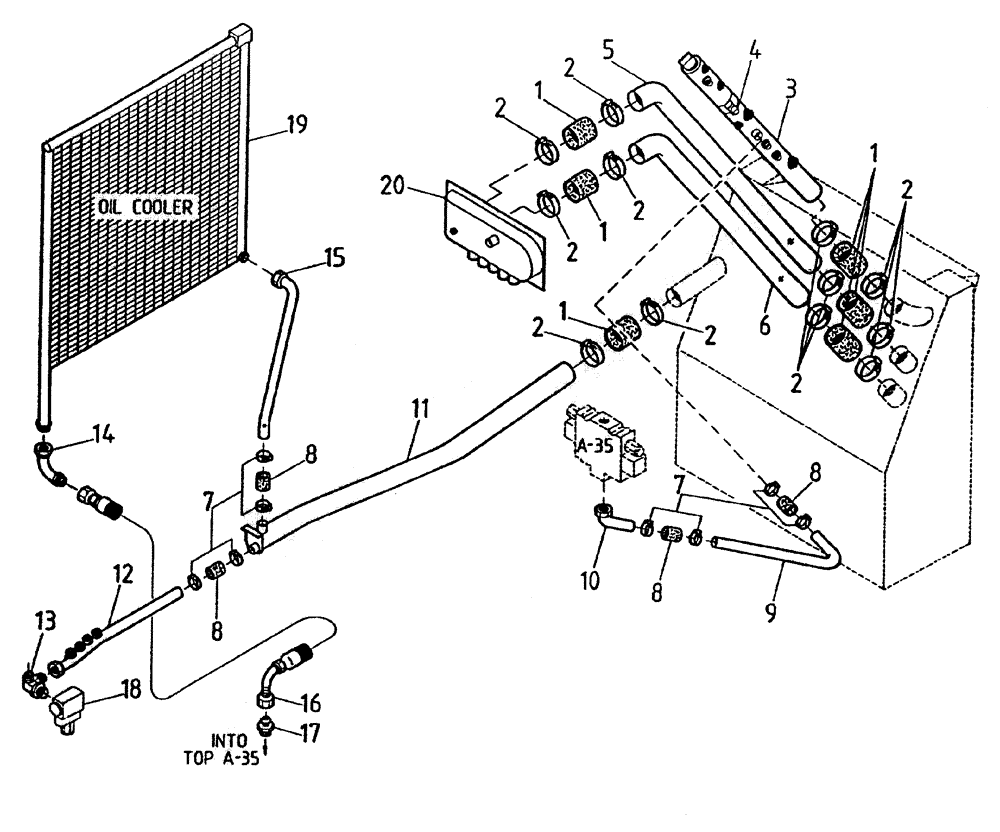

Схема запчастей Case IH 7700 - (B05-10) - HYDRAULIC SUCTION LINES (108/6CT), UP TO AND INCLUDING Hydraulic Components & Circuits
1
4
2
13
7
18
2
19
1
2
7
2
6
15
12
8
16
11
2
8
2
1
14
5
9
10
2
7
3
1
8
2
8
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86475800

HOSE,76.20 mm ID x 150.00 mm

6шт.

2

00135785

HOSE CLAMP

12шт.

3

87231730

VENT MANIFOLD

1шт.

4

HYDRAULIC RELIEF VALVE (Refer Figure B04-70)

1шт.

5

87157000

TUBE

1шт.

6

86766001

TUBE

TUBE

1шт.

7

00152128

HOSE CLAMP

8шт.

8

86312272

HOSE,38.10 mm ID x 110.00 mm

4шт.

9

87231776

TUBE

1шт.

10

87231728

TUBE

1шт.

11

86995100

PANEL

MANIFOLD

1шт.

12

86994800

TUBE,38.10 mm OD x 612, 38 mm L

MANIFOLD

1шт.

13

86310816

HYD CONNECTOR

ELBOW

1шт.

14

00408451

HYD CONNECTOR

ELBOW

1шт.

15

87232400

TUBE,38 mm DIA x 543 mm L

1шт.

16

87224408

HOSE

1шт.

17

00400237

HYD CONNECTOR

NIPPLE

1шт.

18

HYDRAULIC RELIEF VALVE (Refer Figure B04-65)

1шт.

19

00180536

COOLER

oil

1шт.

20

87215622

MANIFOLD

TANK

1шт.
