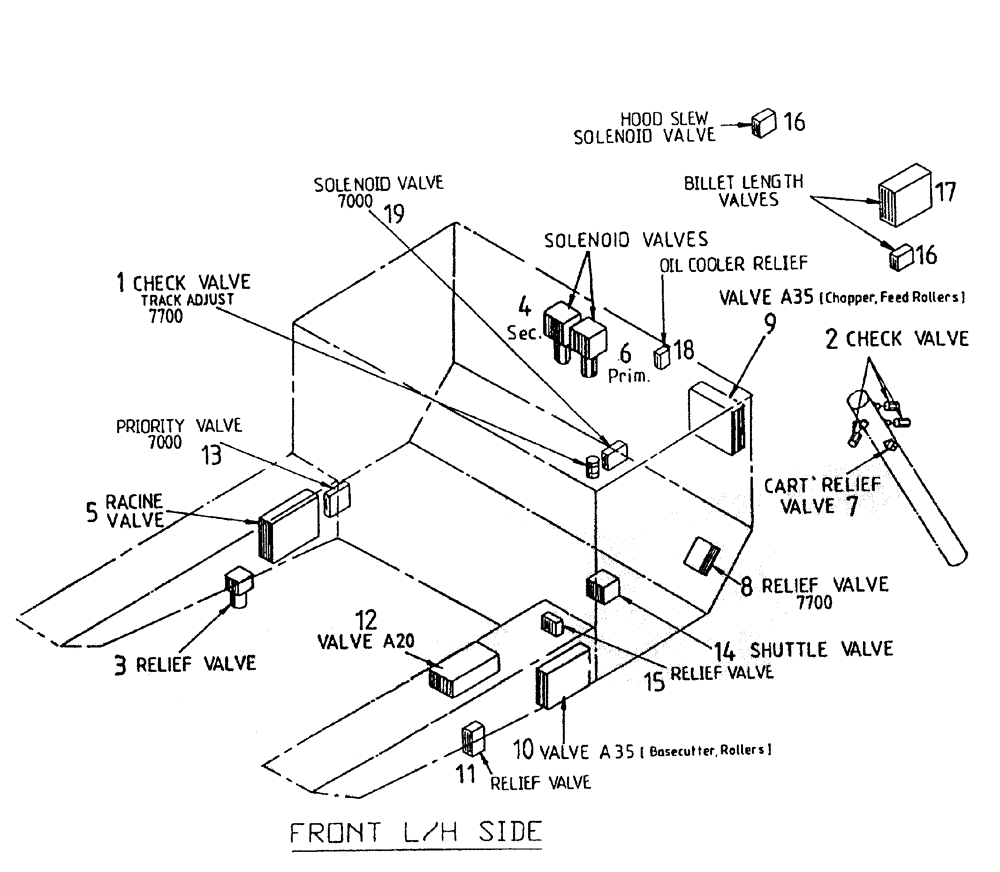

Запчасти Case IH 7700 (B00-30A) - HYDRAULIC VALVES, SERIAL #7908 AND ONWARDS Hydraulic Components & Circuits

1

HYDRAULIC CHECK VALVE (Refer Figure B04-45)

1шт.

2

HYDRAULIC CHECK VALVE (Refer Figure B04-50)

1шт.

3

HYDRAULIC RELIEF VALVE (Refer Figure B04-65)

1шт.

4

HYDRAULIC RELIEF VALVE (Refer Figure B04-55)

1шт.

5

HYDRAULIC RACINE VALVE (Refer Figure B04-20)

1шт.

6

HYDRAULIC RELIEF VALVE (Refer Figure B04-55)

1шт.

7

HYDRAULIC RELIEF VALVE (Refer Figure B04-70)

1шт.

8

HYDRAULIC RELIEF VALVE (Refer Figure B04-60)

1шт.

9

HYDRAULIC VALVE (Refer Figure B04-10)

1шт.

10

HYDRAULIC VALVE (Refer FigureB04-15)

1шт.

11

HYDRAULIC RELIEF VALVE (Refer Figure B04-95)

1шт.

12

HYDRAULIC VALVE (Refer Figure B04-00)

1шт.

12

HYDRAULIC VALVE (Refer Figure B04-05)

1шт.

12

HYDRAULIC VALVE (Refer Figure B04-07)

1шт.

13

HYDRAULIC PRIORITY VALVE (Refer Figure B04-35)

1шт.

14

HYDRAULIC SHUTTLE VALVE (Refer Figure B04-40)

1шт.

15

HYDRAULIC RELIEF VALVE (Refer Figure B04-92)

1шт.

16

HYDRAULIC SOLENOID VALVE (Refer Figure B04-85)

1шт.

17

HYDRAULIC SELECTOR VALVE (Refer Figure B04-90)

1шт.

18

HYDRAULIC RELIEF VALVE (Refer Figure B04-60)

1шт.

19

HYDRAULIC SOLENOID VALVE (Refer Figure B04-75)

1шт.
