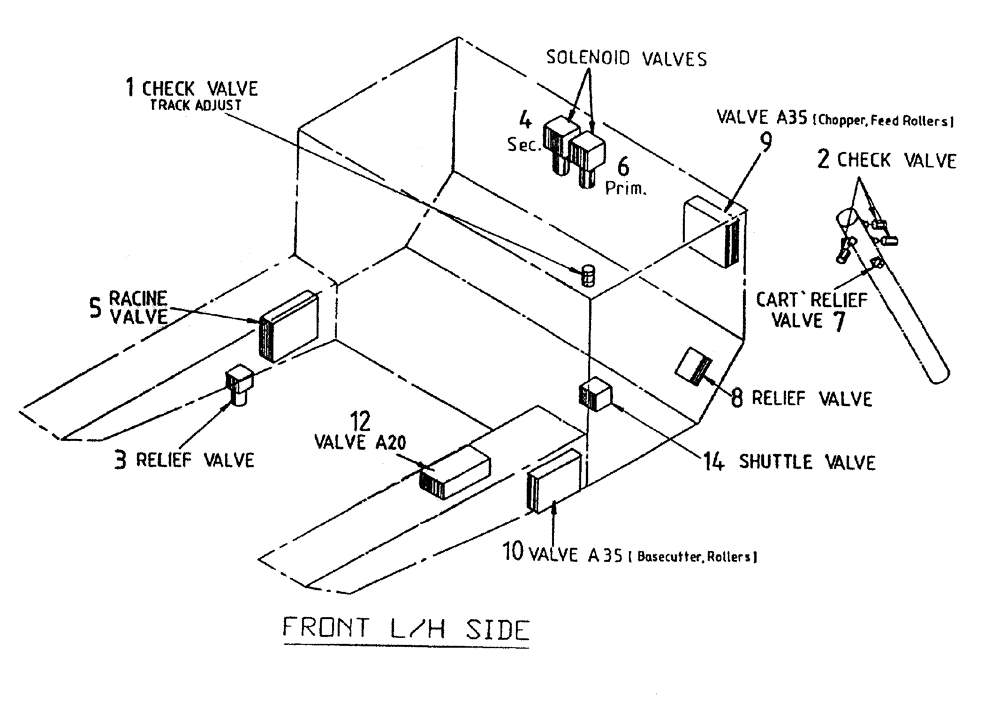

Запчасти Case IH 7700 (B00-30) - HYDRAULIC VALVES (7700), UP TO AND INCLUDING SERIAL #7907 Hydraulic Components & Circuits

1

HYDRAULIC CHECK VALVE (Refer Figure B04-45)

1шт.

2

HYDRAULIC CHECK VALVE (Refer Figure B04-50)

1шт.

3

HYDRAULIC RELIEF VALVE (Refer Figure B04-65)

1шт.

4

HYDRAULIC RELIEF VALVE (Refer Figure B04-55)

1шт.

5

HYDRAULIC RACINE VALVE (Refer Figure B04-20)

1шт.

6

HYDRAULIC RELIEF VALVE (Refer Figure B04-55)

1шт.

7

HYDRAULIC RELIEF VALVE (Refer Figure B04-70)

1шт.

8

HYDRAULIC RELIEF VALVE (Refer Figure B04-60)

1шт.

9

HYDRAULIC VALVE (Refer Figure B04-10)

1шт.

10

HYDRAULIC VALVE (Refer Figure B04-15)

1шт.

12

HYDRAULIC VALVE (Refer Figure B04-00)

1шт.

12

HYDRAULIC VALVE (Refer Figure B04-05)

1шт.

14

HYDRAULIC SHUTTLE VALVE (Refer Figure B04-40)

1шт.
