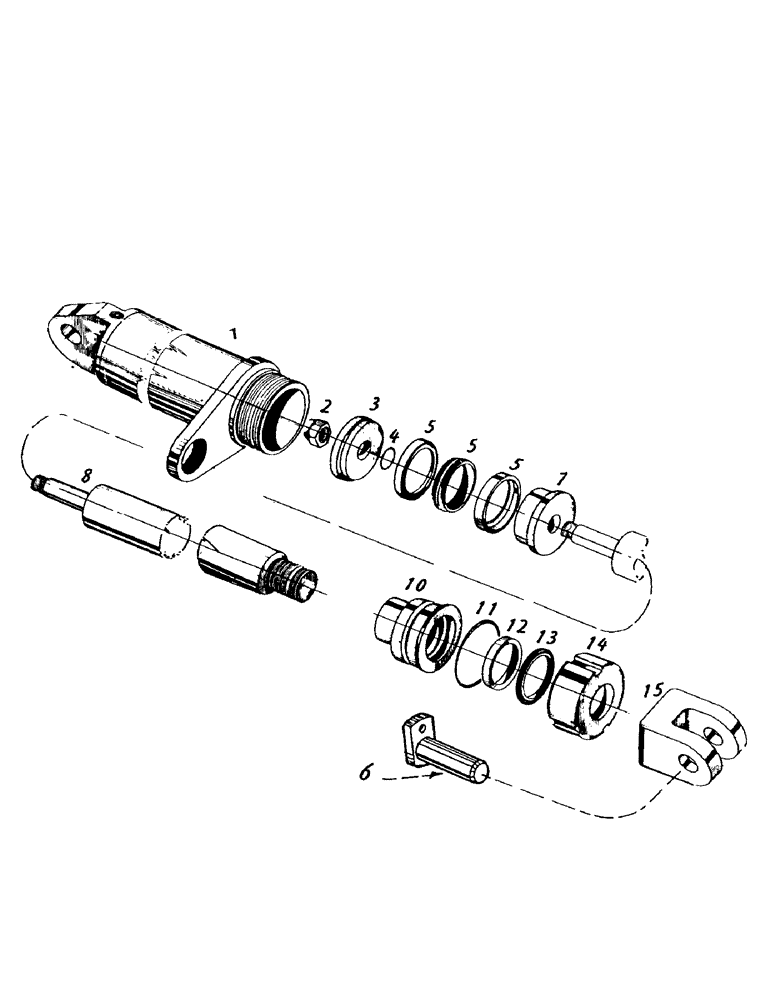

Запчасти Case IH 7700 (B01-45) - HYDRAULICS, CYLINDER, ELEVATOR LIFT Hydraulic Components & Circuits

1

86929400

CYLINDER ASSY.

BODY RH

1шт.

1

86929500

CYLINDER ASSY.,63.5mm Bore Dia

BODY LH

1шт.

2

00607933

LOCK NUT

NUT

1шт.

3

86787900

PISTON

RETAINER

1шт.

4

00100019

O-RING

1шт.

5

00100716

OIL SEAL

SEAL

1шт.

6

86788000

PIN,25.4mm OD x 75mm L

1шт.

7

86787800

PISTON

1шт.

8

86789500

SHAFT

1шт.

10

87214803

CYLINDER HEAD

GLAND 7131

1шт.

11

00100106

O-RING

1шт.

12

00100758

OIL SEAL

SEAL 7131

1шт.

13

00100675

SEAL

WIPER

1шт.

14

86930200

NUT

1шт.

15

86786800

CLEVIS

1шт.

16

87214805

SEAL KIT

7131

1шт.

17

86929300

CYLINDER ASSY.,31.75mm Rod, 915mm Stroke

ASSY LH

1шт.

17

86929200

CYLINDER ASSY.

ASSY RH

1шт.
