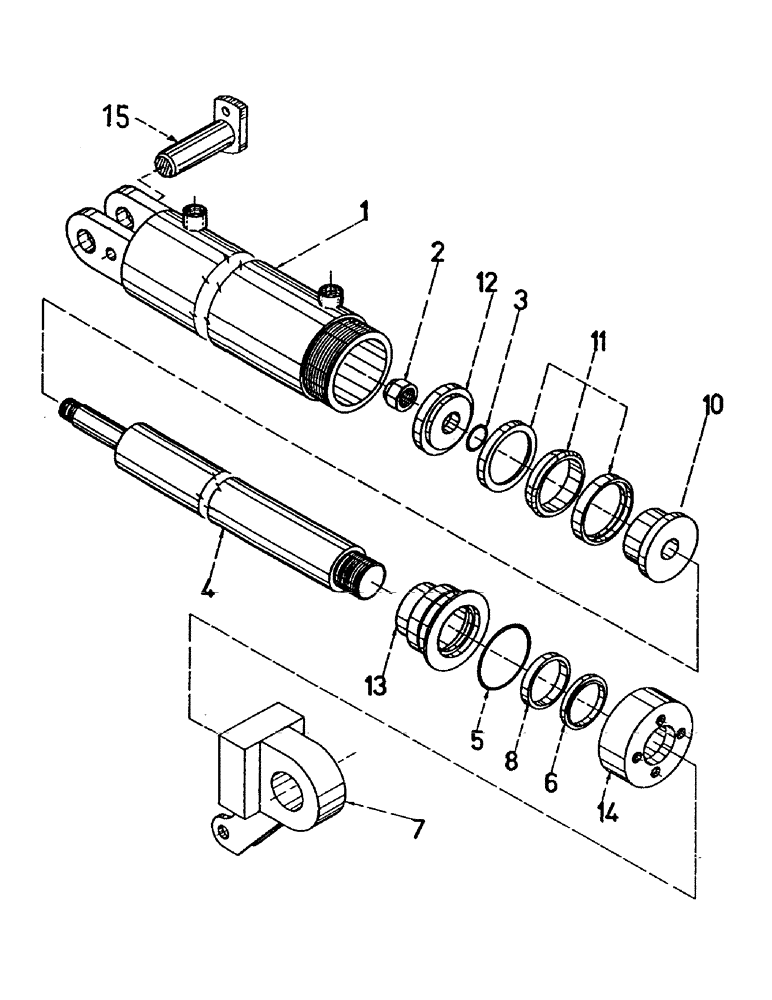

Запчасти Case IH 7700 (B01-15) - HYDRAULICS, CYLINDER, BASECUTTER LIFT, 7700 Hydraulic Components & Circuits

1

87125600

CYLINDER,79mm Bore Dia

1шт.

2

00607933

LOCK NUT

NUT

1шт.

3

00100019

O-RING

1шт.

4

87214117

HYDRAULIC CYLINDER

PISTON ROD

1шт.

5

00100110

O-RING

1шт.

6

00100722

WIPER SEAL

ROD WIPER

1шт.

7

87214180

CLEVIS

1шт.

8

00100711

WIPER SEAL

SEAL

1шт.

10

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

PISTON HEAD

1шт.

11

00100715

OIL SEAL

SEAL

1шт.

12

86787100

PISTON

1шт.

13

87214804

CYLINDER HEAD

HEAD

1шт.

14

87045700

SPECIAL NUT

NUT

1шт.

15

86788000

PIN,25.4mm OD x 75mm L

LHS

1шт.

15

87217160

PIN

RHS

1шт.

16

87213917

SEAL KIT

1шт.

17

87214194

CYLINDER,Double Acting, 44.45mm Rod, 265mm Stroke

ASSEMBLY

1шт.
