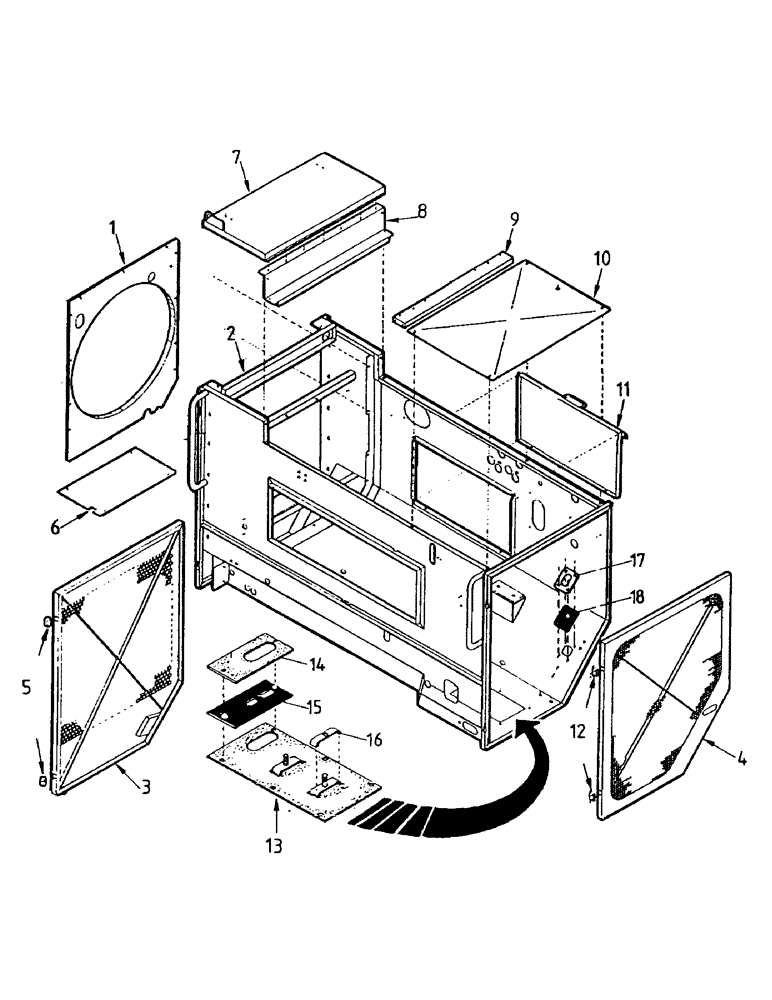

Запчасти Case IH 7700 (C03-00) - ENGINE, COMPARTMENT Engine & Engine Attachments

1

87224978

SHROUD

1шт.

2

86943200

COMP'MENT

1шт.

3

86969600

DOOR ASSY.

DOOR

1шт.

3

00607939

SPRING

CATCH

1шт.

3

00135872

SOFT TRIM

PINCHWELD (With rubber)

1шт.

4

86977100

DOOR ASSY.

DOOR

1шт.

4

00180492

SEAL

PINCHWELD (With rubber)

1шт.

5

86983900

HINGE

2шт.

6

86977700

COVER

1шт.

7

86958000

COVER

1шт.

7

86958200

HINGE

1шт.

8

86948800

COVER

1шт.

9

86717800

BRACE

1шт.

10

86955900

COVER PLATE

COVER (Without air con)

1шт.

10

87222500

COVER PLATE

COVER (With air con)

1шт.

10

00154532

WEATHERSTRIP

RUBBER EDGING

1шт.

11

86718100

COVER ASSY

COVER

1шт.

12

87222427

HINGE

2шт.

13

87136900

COVER

(Without 2-speed valve)

1шт.

13

87137000

COVER

(With 2-speed valve)

1шт.

14

87217339

RETAINER

SEAL RETAINER

1шт.

15

87217340

SEAL

1шт.

16

87220662

CLAMP

2шт.

17

87213656

COVER PLATE

1шт.

18

87219224

PLATE

1шт.
