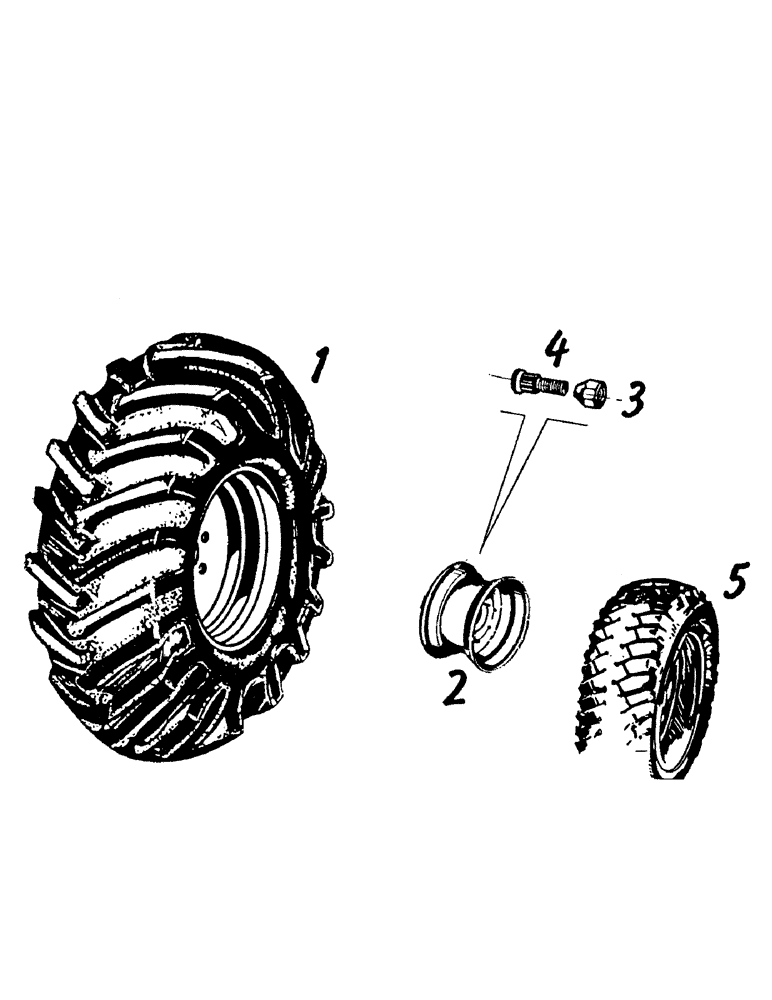

Запчасти Case IH 7700 (A03-04) - MAINFRAME, WHEELS, 7000 Mainframe & Functioning Components

1

87217885

WHEEL (30") (LH rear)

1шт.

1

87217884

WHEEL ASSY

WHEEL (30") (RH rear)

1шт.

1

87217882

RIM

(30") (standard) (rear)

2шт.

1

87217878

RIM (30") (narrow) (rear)

2шт.

1

00132536

TUBE

(30") (rear)

2шт.

1

00132542

TYRE/TIRE

TYRE (18.4 x 30) (rear)

2шт.

1

86315530

WHEEL (26") (rear)

2шт.

1

87215724

WHEEL

RIM (26") (rear)

2шт.

1

00132891

TUBE

(26") (rear)

2шт.

1

00135731

TYRE/TIRE

TYRE (23.1 x 26)

2шт.

2

86754000

RIM

(front)

2шт.

3

00607977

WHEEL

NUT (front)

16шт.

4

00607976

VALVE STEM

(front)

16шт.

5

00134556

TUBE

(front)

2шт.

5

00134555

TYRE/TIRE

TYRE (front)

2шт.

6

86754700

WHEEL ASSY

WHEEL ASSEMBLY (front)

2шт.
